Side Outlet Tee 176-C (42.4mm)

from only £5.95 (ex.VAT) £7.14 (inc.VAT)
Average: 1 reviews
Available to buy
Available for Click and Collect
Add To Basket
Product Code:176C
Bulk Discounts ex. VAT inc. VAT
Order 1 to 25 Tube Clamps  £7.75 £9.30
Order 26 to 49 Tube Clamps  £6.60 £7.92
Order over 50 Tube Clamps  £5.95 £7.14
View more:

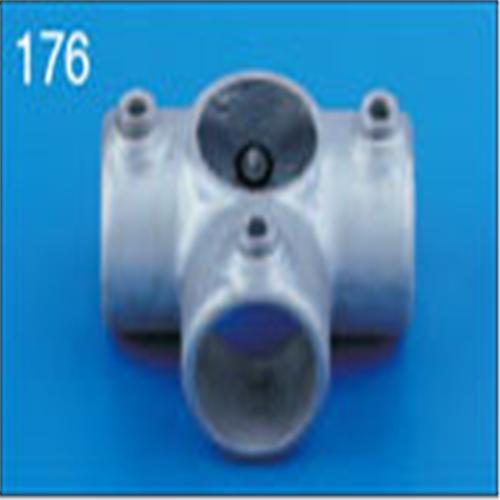

Tube Clamps, Side Outlet Tee 176-C (42.4mm)

Tube Clamp or Pipe Clamps for 42.4mm tube. This malleable iron casting is also available in 48.3mm tube clamps & 33.7mm Tube Clamp. Complies with B.S. EN1461. And are also known by the term Key Clamps.

InfoDetail
Manufacturing Standard B.S. EN1461.
Material Blackheart malleable iron casting (BS EN 1562:1997) using grade B32-10 material with a hot dipped galvanised finish (BS EN 1461:1999)
Allen Key Size 3/8
Weight 0.94kg

Three way tee used to join 3 tubes at 90° to each other with the vertical passing through the fitting. Typical use would be on structures such as market stall or play frames.

Equivalent product
 Interclamp  176
 Keeklamp  35
 Fast Clamp   C23
 Alvin  A24

All clamps come with stainless steel grub screws fitted. If full tightened using a ratchet key to a torque of 4.1kg/m (29ft/lb), the grub screw is capable of withstanding an applied slipload of 900kg.
