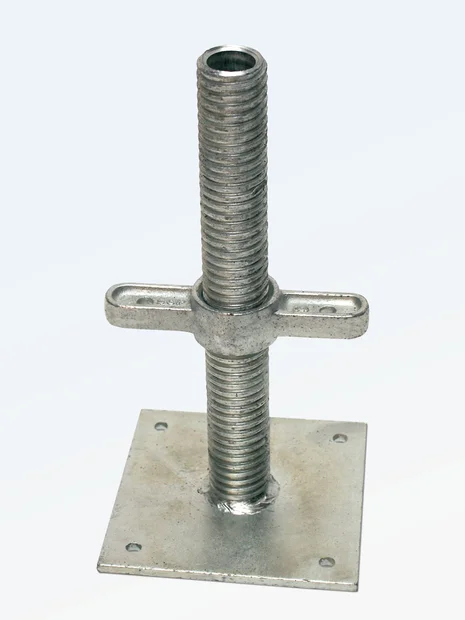

AB9 Base Jack - 4 Tonne Capacity - Zinc Plated
Our AB9 base jacks are well suited for scaffolding, shoring and underpinning. They are also ideal solutions for staging or exhibition stands, where a shorter length base jack is required. The AB9 base jack has a 4 tonne capacity, and measures 310mm tall overall with an adjustable range of 210mm.
| Info | Detail |
|---|
| Base Plate Size |
150mm x 150mm x 6mm thick. |
| Weight |
3.2KG |
| Safe Working Load |
4 Tonne |
| European Standard. |
BS4360/43A, BS1139 & EN74 standards |
| Material |
Zinc Plated |
| Thread |
4Tpi Acme 310mm x 38mm o/d, 210mm adjustment. |
Tested to BS4360/43A, BS1139 & EN74 standards. SWL OF 4 Tonne capacity. Zinc Plated. Thread 4TPI Acme, Base Plate 150mm x 150mm x 6mm thick. Thread 310mm x 38mm o/d, 210mm adjustment. Double wing nut.
We also supply 4 tonne base jacks (500mm), 6 tonne base jacks (500mm), and AB5 4 tonne base jacks (200mm).
