Aluminium Male Single Swivel Socket Member (48.3mm) - Kee Lite (LM50-8)
The male portion of a swivel component combination. The fitting can also be used to attach flat panels to tubular structures. This aluminium tube clamp is to be used with 48.3mm alloy or steel tube.
These aluminium tube clamps are great for use in harsh enviroments (like marine work), as they are corrision resistant, and controlled enviroments like clean-rooms etc... They can also be used as an alternative to fabrication to construct all-aluminium structures, and are also useful for building temporary or portable structures like trade show stands, banner stands, for staging or lighting rigs etc... as they are extremely lightweight.
- Lightweight
- Corrosion Resistant
- Require little long term maintenance
- Fitted with Stainless Steel recessed grub screws
- Main fittings are TÜV approved
|
|
|

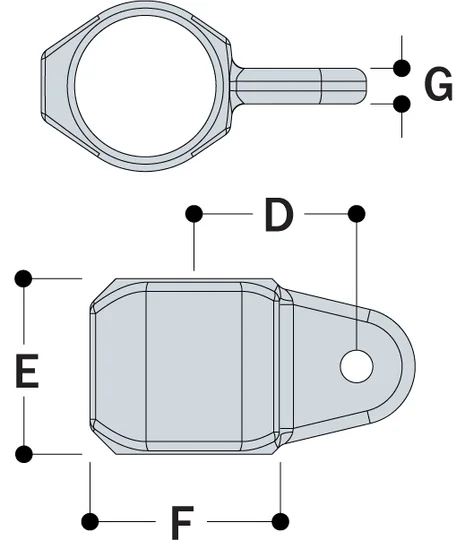

Measurements
|
|
|
Size
|
Code
|
D
|
E
|
F
|
G
|
Dia.
|
Weight (kgs)
|
|
33.7mm
|
LM50-6
|
50
|
44
|
47
|
11
|
10
|
0.12
|
|
42.4mm
|
LM50-7
|
59
|
51
|
50
|
11
|
10
|
0.15
|
|
48.3mm
|
LM50-8
|
65
|
60
|
55
|
11
|
10 |
0.20
|
|
Info
|
Detail
|
|
Manufacturer
|
Kee Lite
|
|
Material
|
Aluminium
|
|
Allen Key Size
|
3/4
|
|
Weight
|
0.20kg
|
