Aluminium Short Tee (48.3mm) - Kee Lite (L10-8)
This aluminium short tee tube clamp is to be used with 48mm alloy or steel tube. Designed to give a 90 degree butt joint between two tubes and frequently used for the joint between end uprights and middle rail where the railing site is straight/level. This fitting can't be used where the tube passing through the sleeve is required to be jointed within the fitting, as it only has 1x grub screw to secure the horizontal tube to the fitting, and another grub screw to secure the vertical tube.
These aluminium tube clamps are great for use in harsh enviroments (like marine work), as they are corrision resistant, and controlled enviroments like clean-rooms etc... They can also be used as an alternative to fabrication to construct all-aluminium structures, and are also useful for building temporary or portable structures like trade show stands, banner stands, for staging or lighting rigs etc... as they are extremely lightweight.
- Lightweight
- Corrosion Resistant
- Require little long term maintenance
- Fitted with Stainless Steel recessed grub screws
- Main fittings are TÜV approved
|
|

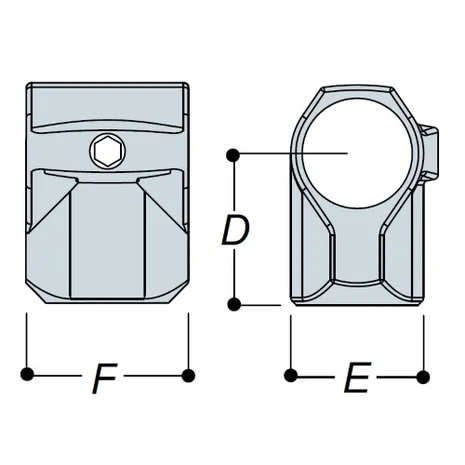

Measurements
|
|
Size
|
Code
|
D
|
E
|
F
|
Weight (kgs)
|
33.7mm
|
KL101B
|
52
|
42
|
56
|
0.13
|
42.4mm
|
KL101C
|
65
|
53
|
64
|
0.20
|
48.3mm
|
KL101D
|
74
|
60
|
70
|
0.30
|
Info
|
Detail
|
Manufacturer
|
Kee Lite
|
Material
|
Aluminium
|
Allen Key Size
|
3/8
|
Weight
|
0.30kg
|
This tube clamp is also supplied in 48.3mm size with a galvanised iron finish or in 33.7mm size with an aluminium finish.
