Braked Swivel Castor & Expander for 48.3mm Tube

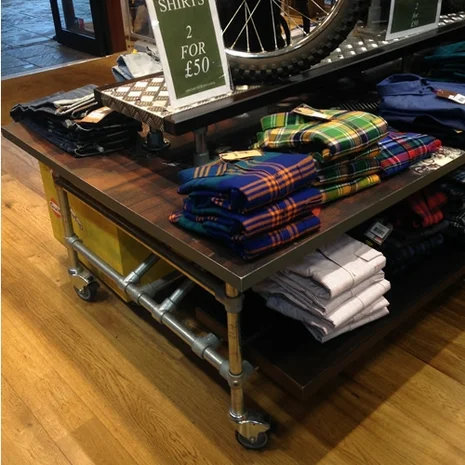

Our swivel castors are perfect for creating furniture, point of sale displays, light duty trucks and trolleys. The expander allows it to fit our range of 48.3mm tube and is tightened with a 17mm spanner or socket.

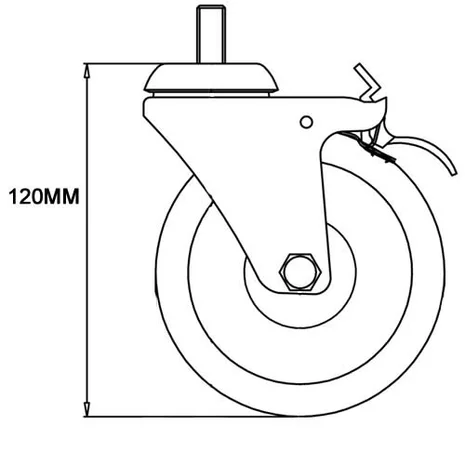

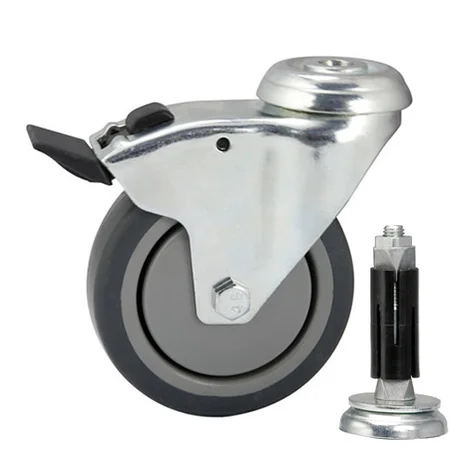

The castor itself is made from pressed steel and the swivel head has a double ball race and grey rubber tyred wheel. The wheel has a plastic centre. The measurement from the bottom of the wheel to where the tube would rest is 120mm (please see diagram). The castor inserts 75mm into the tube.
We also stock this castor and expander set without a brake.
To tighten the expander you will need to use a 17mm spanner or equivalent.
| Info | Detail |
|---|
| Wheel Diameter |
100mm |
| Expander Fits |
48.3mm tube |
| Braked? |
Yes |
| Weight |
1KG |
| Material |
Pressed steel bracket, rubber tyred wheel |
| Wheel Capacity |
70kg each
|
