Gate Hinge 140-B (33.7mm)

from only £2.70 (ex.VAT) £3.24 (inc.VAT)
Average: reviews











Available to buy
Available for Click and Collect
Add To Basket
Product Code:140B
Bulk Discounts ex. VAT inc. VAT
Order 1 to 25 Tube Clamps  £3.40 £4.08
Order 26 to 49 Tube Clamps  £3.20 £3.84
Order over 50 Tube Clamps  £2.70 £3.24
View more:

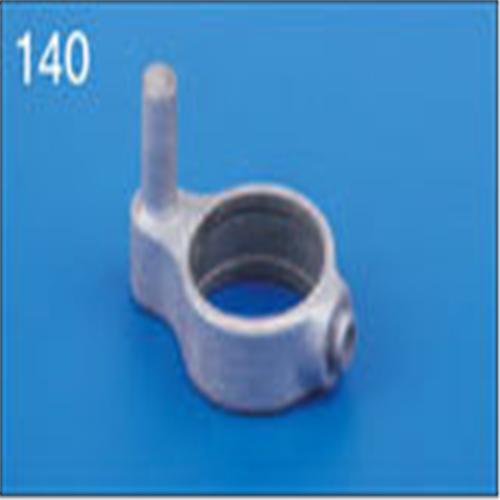

Gate Hinge 140-B (33.7mm)

Tube Clamp or Key Clamps for 33.7mm hand rail tube. This malleable iron casting is also available in 48.3mm tube clamps & 42.4mm tube clamps. Complies with B.S. EN1461. And are also known by the term pipe clamps.

InfoDetail
Manufacturing Standard B.S. EN1461.
Material Blackheart malleable iron casting (BS EN 1562:1997) using grade B32-10 material with a hot dipped galvanised finish (BS EN 1461:1999)
Allen Key Size 1/4
Weight 0.27kg

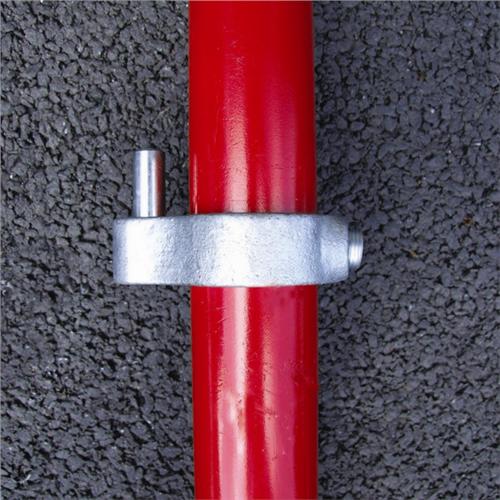

Designed for Steel tube. Handrails, Walkways, clothes rails, shelving, racking .Male section of a two part gate hinge. Used in conjunction with clamp fitting reference 138.

Equivalent product
 Interclamp  140
 Keeklamp  83
 Fast Clamp   C32
 Alvin  A62

All clamps come with stainless steel grub screws fitted. If full tightened using a ratchet key to a torque of 4.1kg/m (29ft/lb), the grub screw is capable of withstanding an applied slipload of 900kg.
