Locking Collar 179-C (42.4mm)

from only £2.10 (ex.VAT) £2.52 (inc.VAT) was £2.60 (ex.VAT) (19.23% OFF)
Average: reviews
Available to buy
Available for Click and Collect
Add To Basket
Product Code:179C
Bulk Discounts ex. VAT inc. VAT
Order 1 to 25 Tube Clamps  £2.60 £3.12
Order 26 to 49 Tube Clamps  £2.35 £2.82
Order over 50 Tube Clamps  £2.10 £2.52
View more:

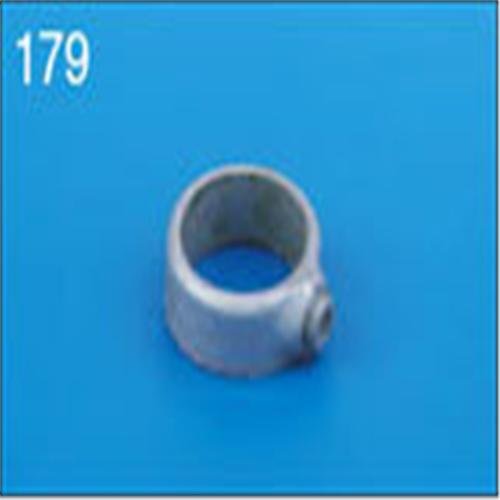

Tube Clamps, Locking Collar 179-C (42.4mm)

Tube Clamp or Pipe Clamps for 42.4mm tube. This malleable iron casting is also available in 48.3mm tube clamps & 33.7mm Tube Clamp. Complies with B.S. EN1461. And are also known by the term Key Clamps.

InfoDetail
Manufacturing Standard B.S. EN1461.
Material Blackheart malleable iron casting (BS EN 1562:1997) using grade B32-10 material with a hot dipped galvanised finish (BS EN 1461:1999)
Allen Key Size 3/8
Weight 0.18kg

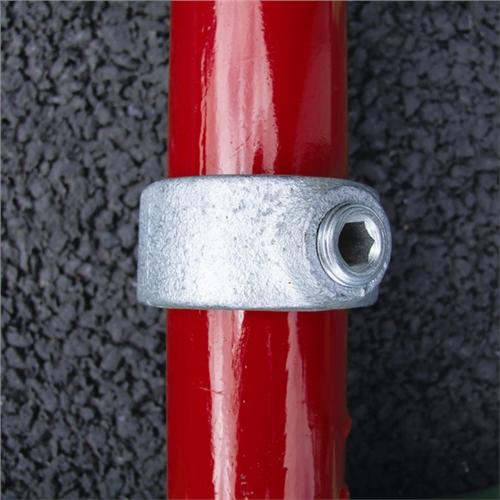

Locking collar used as extra support for a clamp on structures where the slip load on the grubscrew may be exceeded. Can also be used to support a clamp that is required to be undone

Equivalent product
 Interclamp  179
 Keeklamp  75
 Fast Clamp   C30
 Alvin  A58

All clamps come with stainless steel grub screws fitted. If full tightened using a ratchet key to a torque of 4.1kg/m (29ft/lb), the grub screw is capable of withstanding an applied slipload of 900kg.
