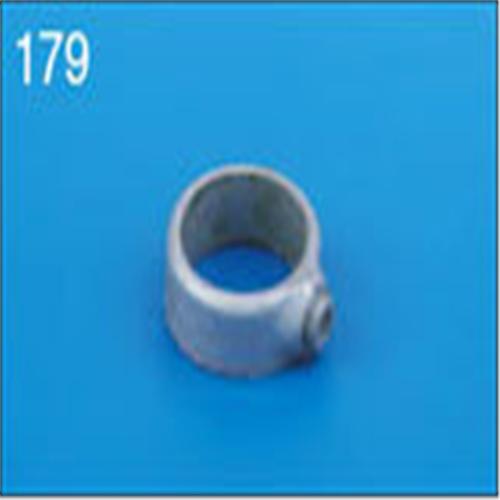

Tube Clamps - Locking Collar 179-D (48.3mm)
Tube Clamp or Pipe Clamps for 48.3mm tube. This malleable iron casting is also available in 33.7mm tube clamps & 42.4mm Tube Clamp. Complies with B.S. EN1461. And are also known by the term Key Clamps.
| Info | Detail |
|---|
| Manufacturing Standard |
B.S. EN1461. |
| Material |
Blackheart malleable iron casting (BS EN 1562:1997) using grade B32-10 material with a hot dipped galvanised finish (BS EN 1461:1999) |
| Allen Key Size |
3/8 |
| Weight |
0.21kg |

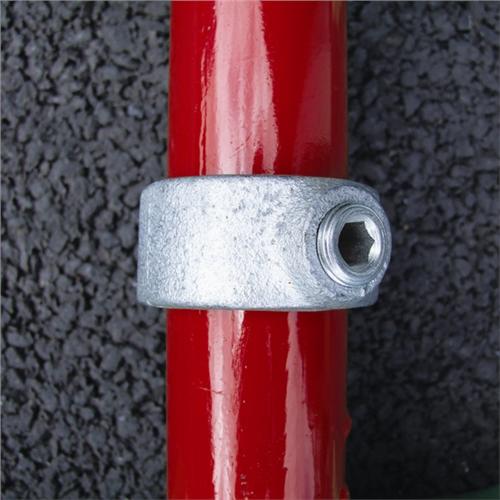

Locking collar used as extra support for a clamp on structures where the slip load on the grubscrew may be exceeded. Can also be used to support a clamp that is required to be undone
| Equivalent product | |
|---|
| Interclamp |
179 |
| Keeklamp |
75 |
| Fast Clamp |
C30 |
| Alvin |
A58 |
All clamps come with stainless steel grub screws fitted. If full tightened using a ratchet key to a torque of 4.1kg/m (29ft/lb), the grub screw is capable of withstanding an applied slipload of 900kg.
