Zinc plated through bolts have a chamfered head to prevent damage to the thread during installation, and come with a special expansion clip to aid rapid installation. Our through bolts are an extremely versatile fixing for use in a wide range of anchoring applications into concrete.
NOTE: If no torque wrench is available, tighten the nut 3 to 4 full turns from finger tight.

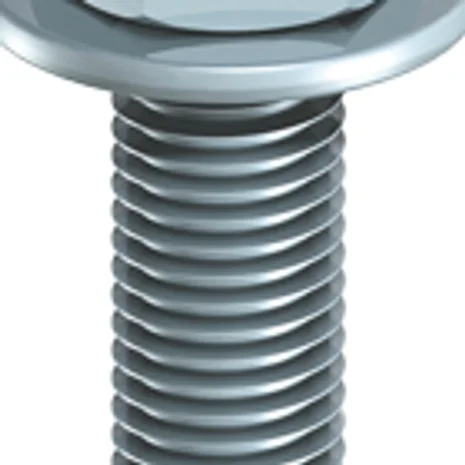

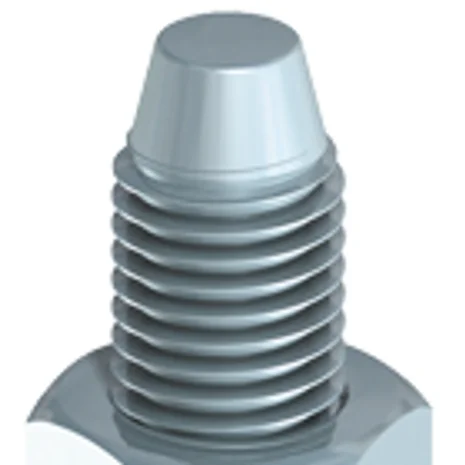

Chamfered head design to prevent damage to thread during installation
Zinc plated and passivated (3-5 microns)
Cold Formed Carbon Steel - Grade 5. 8

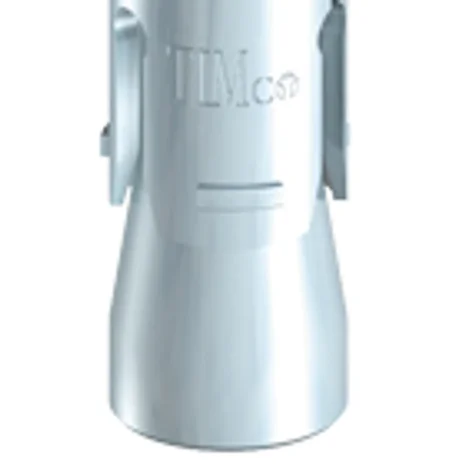

Special expansion clip for rapid installation
| Info | Detail |
|---|
| Thread Ø x L (mm) |
M10 x 100 |
| Max Fixture Thickness (mm) |
35 |
| Fixture Clearance Hole (mm) |
12 |
| Across Flats (mm) |
17 |
| Box Qty. |
50 |
| Technical Spec. | Detail |
|---|
| Size Ø (mm) |
M10 |
| Drill Hole Ø (mm) |
10 |
| Embedment Depth (mm) |
45 |
| Min Drill Hole Depth (mm) |
50 |
| Centre Spacing (mm) |
140 |
| Edge Distance (mm) |
70 |
| Min Structure Thickness (mm) |
90 |
| Rec. Tightening Torque (Nm) |
30 |
| Rec. Tensile Load (kN) |
4.11 |
| Max Rec. Load (kg) |
411 |
We stock a wide range of through bolts here.
