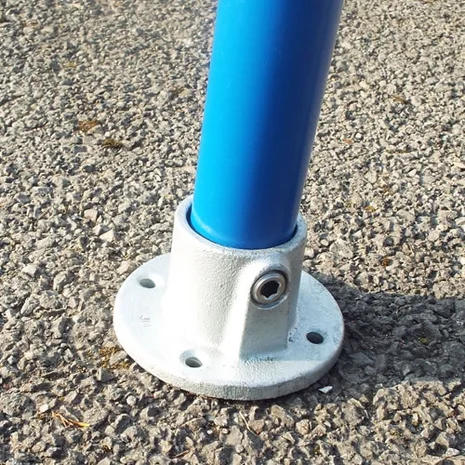

Tube Clamps, Wall Flange 131-C (42.4mm)
Tube Clamp or Pipe Clamps for 42.4mm tube. This malleable iron casting is also available in 48.3mm tube clamps, 33.7mm Tube Clamp and 26.9mm tube clamps. Complies with B.S. EN1461. And are also known by the term Key Clamps.
To secure this fitting we recommend a 5mm wood screw for furniture & wood applications, and a 7.5mm multi fix screw or 8mm shield anchor for concrete applications.
| Info | Detail |
|---|
| Manufacturing Standard |
B.S. EN1461. |
| Material |
Blackheart malleable iron casting (BS EN 1562:1997) using grade B32-10 material with a hot dipped galvanised finish (BS EN 1461:1999) |
| Allen Key Size |
3/8 |
| Weight |
0.68kg |

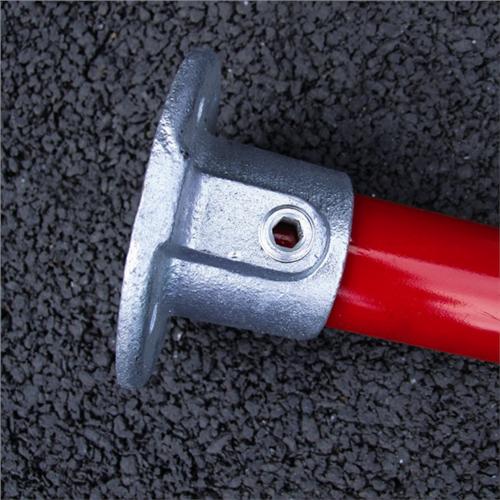

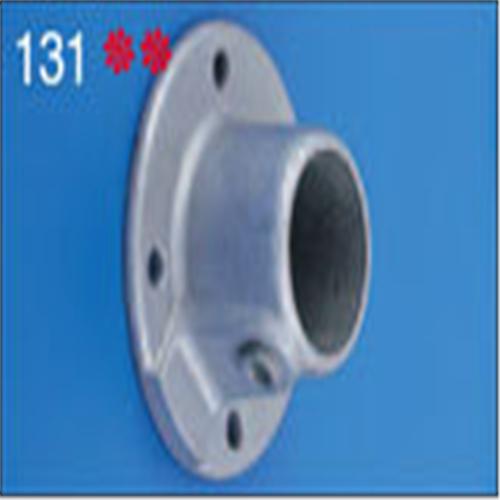

With four countersunk holes, this fitting is ideal as a flange to terminate handrail to a wall or other similar application. May be used on structures where it is required as a positional fixing.
| Equivalent product | |
|---|
| Interclamp |
131 |
| Keeklamp |
61 |
| Fast Clamp |
C11 |
| Alvin |
A10 |
We do not recommend pre-drilling as there can be irregularities in casting that can produce small variations in the size of the holes.
All clamps come with stainless steel grub screws fitted. If full tightened using a ratchet key to a torque of 4.1kg/m (29ft/lb), the grub screw is capable of withstanding an applied slipload of 900kg.
