90° Elbow 125-D (48.3mm)

from only £2.50 (ex.VAT) £3.00 (inc.VAT) was £3.55 (ex.VAT) (29.58% OFF)
Average: 7 reviews
Available to buy
Available for Click and Collect
Product Code:125D
Bulk Discounts ex. VAT inc. VAT
Order 1 to 25 Tube Clamps  £3.20 £3.84
Order 26 to 49 Tube Clamps  £2.80 £3.36
Order over 50 Tube Clamps  £2.50 £3.00
View more:

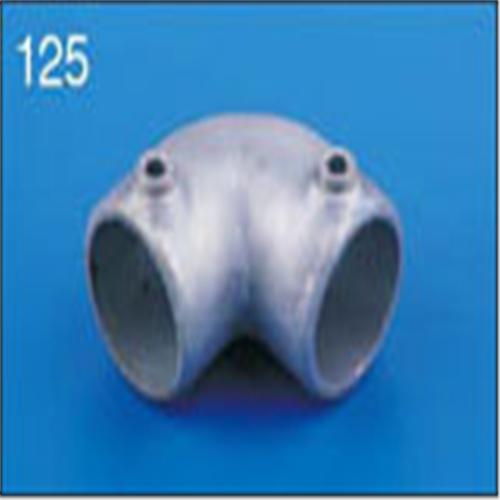

Tube Clamps - 90 Degree Elbow 125-D (48.3mm)

Tube Clamp or Pipe Clamps for 48.3mm tube. This malleable iron casting is also available in 33.7mm tube clamps42.4mm Tube Clamp and 26.9mm tube clamps. Complies with B.S. EN1461. And are also known by the term Key Clamps.

InfoDetail
Manufacturing Standard B.S. EN1461.
Material Blackheart malleable iron casting (BS EN 1562:1997) using grade B32-10 material with a hot dipped galvanised finish (BS EN 1461:1999)
Allen Key Size 3/8
Weight 0.91KG

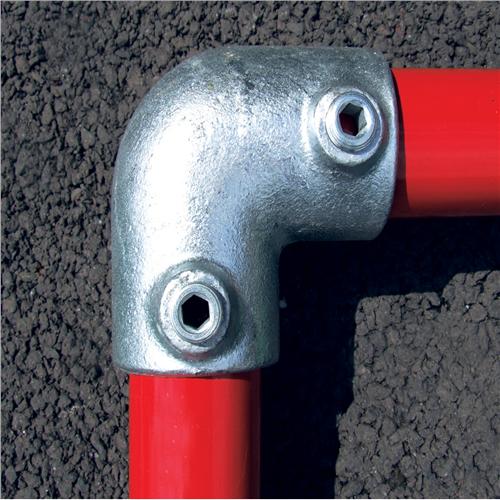

A 90° elbow. Typical use is to connect the end vertical to the top rail in straight and level guardrail. Can also be used to create a 90 tube bend.

Equivalent product
 Interclamp  125
 Keeklamp  15
 Fast Clamp   C02
 Alvin  A6

All clamps come with stainless steel grub screws fitted. If full tightened using a ratchet key to a torque of 4.1kg/m (29ft/lb), the grub screw is capable of withstanding an applied slipload of 900kg.

Technical Spec: Download Specification
TUV Certificate: Download Specification
