Internal Joiner 150-C (42.4mm)

from only £3.20 (ex.VAT) £3.84 (inc.VAT)
Average: 1 reviews
Available to buy
Available for Click and Collect
Add To Basket
Product Code:150C
Bulk Discounts ex. VAT inc. VAT
Order 1 to 25 Tube Clamps  £3.95 £4.74
Order 26 to 49 Tube Clamps  £3.55 £4.26
Order over 50 Tube Clamps  £3.20 £3.84
View more:

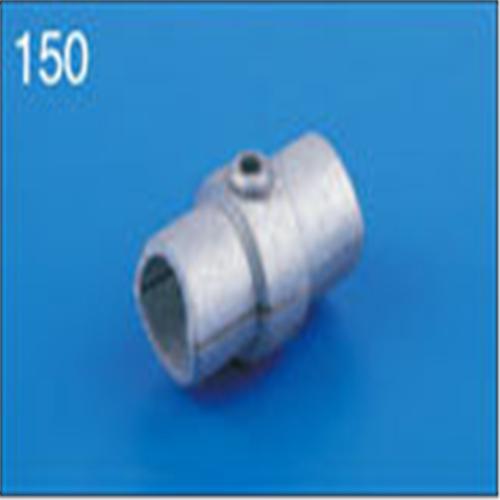

Tube Clamps, Internal Joiner 150-C (42.4mm)

Tube Clamp or Pipe Clamps for 42.4mm tube. This malleable iron casting is also available in 48.3mm tube clamps & 33.7mm Tube Clamp. Complies with B.S. EN1461. And are also known by the term Key Clamps.

InfoDetail
Manufacturing Standard B.S. EN1461.
Material Blackheart malleable iron casting (BS EN 1562:1997) using grade B32-10 material with a hot dipped galvanised finish (BS EN 1461:1999)
Allen Key Size 3/8
Weight 0.43kg

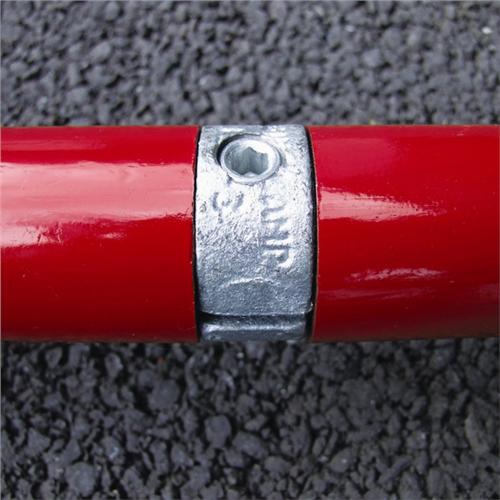

An inline internal tube connector for joining two tubes of the same diameter. Fitting can only be used with 3.2mm wall thick tube. This fitting is not for high or tensile load applications.

Equivalent product
 Interclamp  150
 Keeklamp  18
 Fast Clamp   C01
 Alvin  A9

All clamps come with stainless steel grub screws fitted. If full tightened using a ratchet key to a torque of 4.1kg/m (29ft/lb), the grub screw is capable of withstanding an applied slipload of 900kg.
