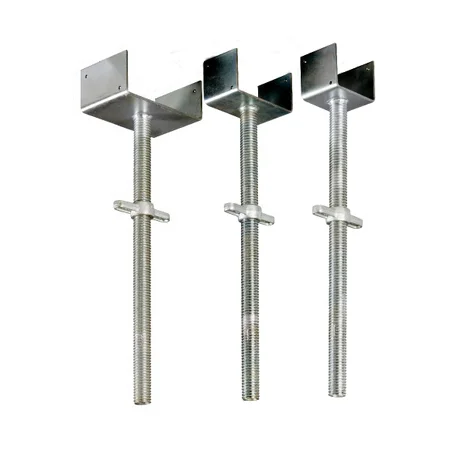

4" (100mm) Adjustable U-Head with Spigot
A heavy duty 4" (100mm) adjustable u-head with spigot. Manufactured and tested to BS1139 and EN74.
Designed to be used with acrow props or system scaffolding (kwikstage or cuplock), the main function of a u-head is to hold timber beams securely in place. Spigot measures 500mm long with a wing nut. Thread is TPI ACME BS4360/50C and is 38mm outside diameter.
Adjustable u-heads are also available in 6" or 8", and fixed u-heads are available in 4", 6" or 8". We stock a full range of acrow props, trench struts and system scaffolding (kwikstage and cuplock).
Info | Detail |
Gap |
120mm |
Width |
100mm |
Height |
100mm |
Specification |
BS1139 and EN74 |
SWL |
4 tonnes (concentric loading) |
Weight |
4.7kg |
