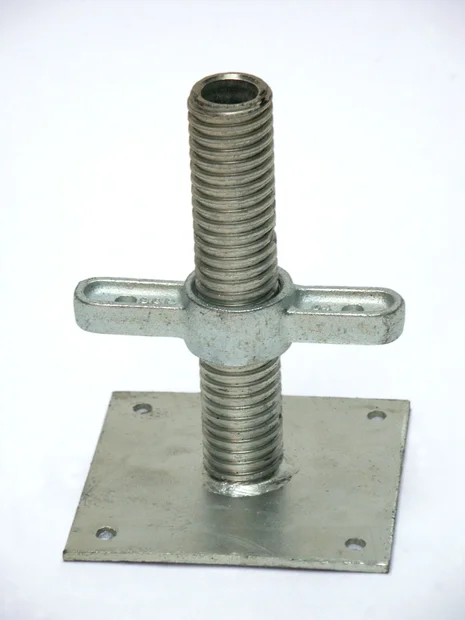

AB5 Base Jack - 4 Tonne Capacity - Zinc Plated
Our AB5 base jacks are well suited for scaffolding, shoring and underpinning. They are also ideal solutions for staging or exhibition stands, where a shorter length base jack is required. The AB5 base jack has a 4 tonne capacity, and measures 200mm tall overall with an adjustable range of 120mm.
| Info | Detail |
|---|
| Base Plate Size |
150mm x 150mm x 6mm thick. |
| Weight |
2.5KG |
| Safe Working Load |
4 Tonne |
| European Standard. |
BS4360/43A, BS1139 & EN74 standards |
| Material |
Zinc Plated |
| Thread |
4Tpi Acme 200mm x 38mm o/d, 120mm adjustment. |
Tested to BS4360/43A, BS1139 & EN74 standards. SWL OF 4 Tonne capacity. Zinc Plated. Thread 4TPI Acme, Base Plate 150mm x 150mm x 6mm thick. Thread 200mm x 38mm o/d, 120mm adjustment. Double wing nut.
We also supply 4 tonne base jacks (500mm), 6 tonne base jacks (500mm), and AB9 4 tonne base jacks (310mm).
