Tube Clamps - Retro Fit 2 Socket Cross 119R-D (48.3mm)
Tube Clamp or Pipe Clamps for 48.3mm tube. Retro fit for easy attachment to existing 48.3mm tube. Complies with B.S. EN1461. Also known by the term Key Clamps.
| Info | Detail |
|---|
| Manufacturing Standard |
B.S. EN1461. |
| Material |
Blackheart malleable iron casting (BS EN 1562:1997) using grade B32-10 material with a hot dipped galvanised finish (BS EN 1461:1999) |
| Allen Key Size |
3/8 |
| Weight |
0.62kg |

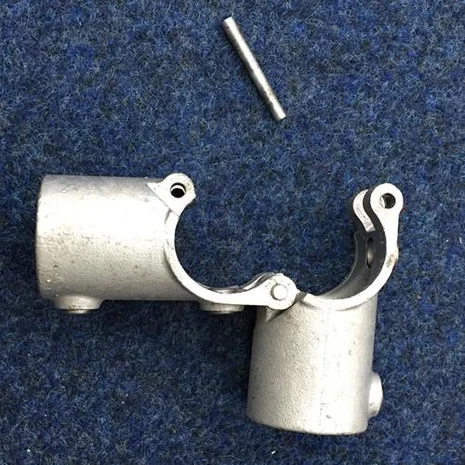

A 90° Socket Cross between a vertical and two horizontals. Used on straight & level guardrail to connect the mid/low rails to the upright. Vertical must remain continuous with cross rails cut. This fitting can be added to existing rails by removing the Kingpin and opening the fitting.
| Equivalent product | |
|---|
| Interclamp |
117Y |
| Keeklamp |
A26 |
| Fast Clamp |
N/A |
| Alvin |
N/A
|
All clamps come with stainless steel grub screws fitted. If full tightened using a ratchet key to a torque of 4.1kg/m (29ft/lb), the grub screw is capable of withstanding an applied slipload of 900kg.
