Aluminium Angle Base Flange (48.3mm) - Kee Lite (L63-8)

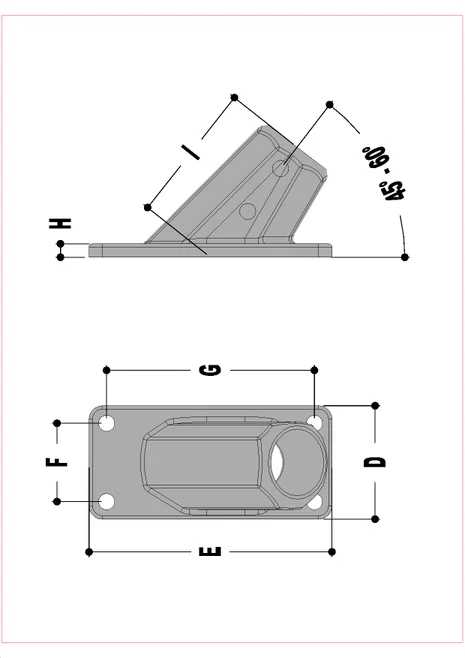

Similar to a Type L62, but used to set up the upright at an angle between 45° to 60°. This fitting should only be subjected to light loads which cannot be positioned at 90° to the applied loads. For greater loads or other tube sizes, a type L62 flange is used and the upright bent to the required angle. Ø indicates the diameter of the fixing hole. This aluminium tube clamp is to be used with 48.3mm alloy or steel tube.

These aluminium tube clamps are great for use in harsh enviroments (like marine work), as they are corrision resistant, and controlled enviroments like clean-rooms etc... They can also be used as an alternative to fabrication to construct all-aluminium structures, and are also useful for building temporary or portable structures like trade show stands, banner stands, for staging or lighting rigs etc... as they are extremely lightweight.

• Lightweight
• Corrosion Resistant
• Require little long term maintenance
• Fitted with Stainless Steel recessed grub screws
• Main fittings are TÜV approved
