Aluminium Base Plate (48.3mm) - Kee Lite (L62-8)
Aluminium Base Plate (48.3mm) - Kee Lite (L62-8) Aluminium Base Plate (48.3mm) - Kee Lite (L62-8)

Aluminium Base Plate (48.3mm) - Kee Lite (L62-8)

from only £22.85 (ex.VAT) £27.42 (inc.VAT)
Average: 1 reviews







Available to buy
Add To Basket
Product Code:KL132D
Bulk Discounts ex. VAT inc. VAT
Order 1 to 25 Tube Clamps  £24.50 £29.40
Order 26 to 49 Tube Clamps  £23.65 £28.38
Order 50+ Tube Clamps   £22.85 £27.42
View more:


Aluminium Base Plate (48.3mm) - Kee Lite (L62-8)

This aluminium base plate tube clamp is to be used with 48.3mm alloy or steel tubeThe base plate should always be used to fix down guardrailing and balustrades. Holes are of sufficient diameter to give a good fixing with either a mechanical or chemical anchor, and two sets of grub screws in the vertical socket give greater stability to the upright. It is recommended that the fixing holes in the flange be in-line with the applied load. The tube is able to pass through the base of the fitting.

These aluminium tube clamps are great for use in harsh enviroments (like marine work), as they are corrision resistant, and controlled enviroments like clean-rooms etc... They can also be used as an alternative to fabrication to construct all-aluminium structures, and are also useful for building temporary or portable structures like trade show stands, banner stands, for staging or lighting rigs etc... as they are extremely lightweight.

The hole diameter for the fixing is 6mm.

  • Lightweight
  • Corrosion Resistant
  • Require little long term maintenance
  • Fitted with Stainless Steel recessed grub screws
  • Main fittings are TÜV approved

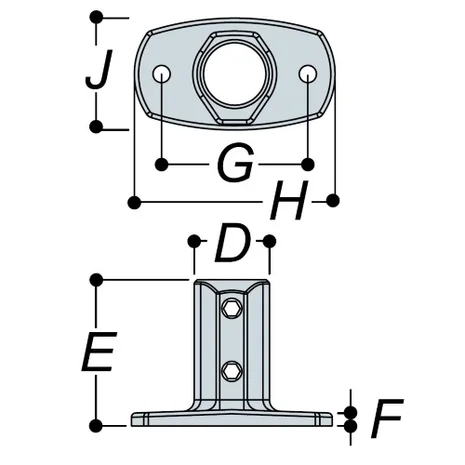

Measurements



Size

Code

D

E

F

G

H

J

Weight (kgs)

33.7mm

KL132B

42

90

9

89

128

75

0.35

42.4mm

KL132C

55

90

9

102

140

82

0.50

48.3mm

KL132D

62

90

9

115

160

84

0.56



Info

Detail

Manufacturer

Kee Lite

Material

Aluminium

Allen Key Size

3/4

Weight

0.56kg

This tube clamp is also supplied in 48.3mm size with a galvanised iron finish.

We do not recommend pre-drilling as there can be irregularities in casting that can produce small variations in the size of the holes.
