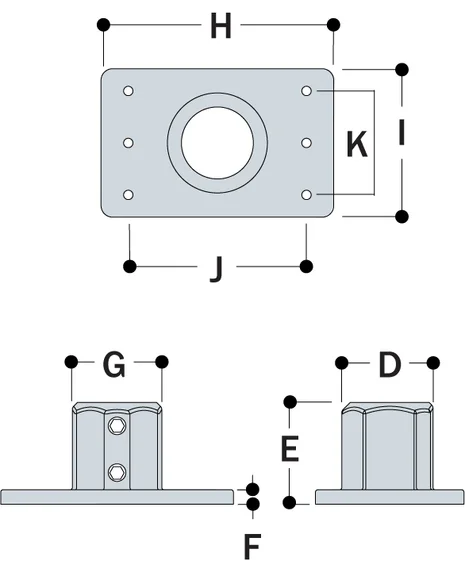

Aluminium Heavy Duty Four Hole Rectangular Flange (48.3mm) - Kee Lite (L148-94)

Type L148 is a structural base fixing used to fix down guardrail and balustrades. This fitting is available with either two or four fixing holes, which are of sufficient diameter to give a good fixing with either a mechanical or chemical anchor. The two socket set screws give greater stability to the upright. It is recommended that fixing holes be in-line with the applied load. Ø indicates diameter of fixing holes.

Note: The L148-9/2 has two holes; the L148-9/4 has four holes.

This aluminium tube clamp is to be used with 48.3mm alloy or steel tube.

These aluminium tube clamps are great for use in harsh enviroments (like marine work), as they are corrision resistant, and controlled enviroments like clean-rooms etc... They can also be used as an alternative to fabrication to construct all-aluminium structures, and are also useful for building temporary or portable structures like trade show stands, banner stands, for staging or lighting rigs etc... as they are extremely lightweight.

• Lightweight
• Corrosion Resistant
• Require little long term maintenance
• Fitted with Stainless Steel recessed grub screws
• Main fittings are TÜV approved
