Aluminium Heavy Duty Two Hole Rectangular Flange (48.3mm) - Kee Lite (L148-92)
Aluminium Heavy Duty Two Hole Rectangular Flange (48.3mm) - Kee Lite (L148-92) Aluminium Heavy Duty Two Hole Rectangular Flange (48.3mm) - Kee Lite (L148-92)

Aluminium Heavy Duty Two Hole Rectangular Flange (48.3mm) - Kee Lite (L148-92)

from only £89.15 (ex.VAT) £106.98 (inc.VAT)
Average: reviews






Available to buy
Add To Basket
Product Code:L148-92
Bulk Discounts ex. VAT inc. VAT
Order 1 to 25 Tube Clamps  £95.50 £114.60
Order 26 to 49 Tube Clamps  £92.20 £110.64
Order 50+ Tube Clamps   £89.15 £106.98
View more:


Aluminium Heavy Duty Two Hole Rectangular Flange (48.3mm) - Kee Lite (L148-92)

Type L148 is a structural base fixing used to fix down guardrail and balustrades. This fitting is available with either two or four fixing holes, which are of sufficient diameter to give a good fixing with either a mechanical or chemical anchor. The two socket set screws give greater stability to the upright. It is recommended that fixing holes be in-line with the applied load. Ø indicates diameter of fixing holes.

Note: The L148-9/2 has two holes; the L148-9/4 has four holes.

This aluminium tube clamp is to be used with 48.3mm alloy or steel tube.

These aluminium tube clamps are great for use in harsh enviroments (like marine work), as they are corrision resistant, and controlled enviroments like clean-rooms etc... They can also be used as an alternative to fabrication to construct all-aluminium structures, and are also useful for building temporary or portable structures like trade show stands, banner stands, for staging or lighting rigs etc... as they are extremely lightweight.

  • Lightweight
  • Corrosion Resistant
  • Require little long term maintenance
  • Fitted with Stainless Steel recessed grub screws
  • Main fittings are TÜV approved

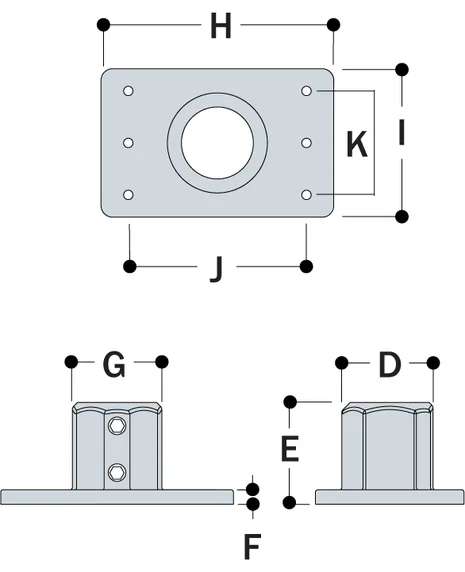

Measurements (mm)



Size

Code

D

E F G H I J K Ø

Weight (kgs)

48.3mm

L148-92

78

87 12 77 198 130 153 45 18

1.13



Info

Detail

Manufacturer

Kee Lite

Material

Aluminium

Allen Key Size

3/4

Weight

1.13kg
