Aluminium Swivel Flange Plate - Kee Lite (LM58)
This may be considered for various wall and brace fixings, usually combined with Type LF50 to give an adjustable angle fitting Type LC58. Ø indicates diameter of holes.
These aluminium tube clamps are great for use in harsh enviroments (like marine work), as they are corrision resistant, and controlled enviroments like clean-rooms etc... They can also be used as an alternative to fabrication to construct all-aluminium structures, and are also useful for building temporary or portable structures like trade show stands, banner stands, for staging or lighting rigs etc... as they are extremely lightweight.
- Lightweight
- Corrosion Resistant
- Require little long term maintenance
- Fitted with Stainless Steel recessed grub screws
- Main fittings are TÜV approved
|
|
|

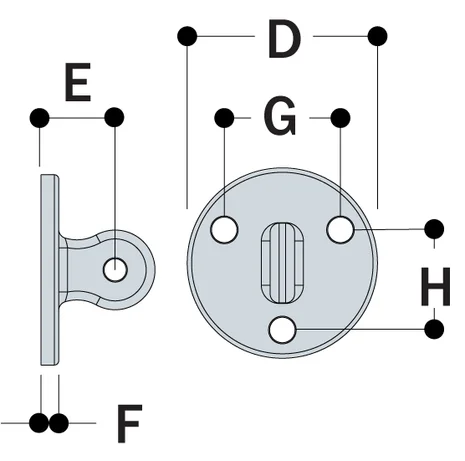

Measurements (mm)
|
|
|
Size
|
Code
|
D
|
E |
F |
G |
H |
Ø |
ØØ |
Weight (kgs)
|
|
ALL
|
LM58
|
86
|
34 |
8 |
53 |
45 |
10 |
11 |
0.17
|
|
Info
|
Detail
|
|
Manufacturer
|
Kee Lite
|
|
Material
|
Aluminium
|
|
Allen Key Size
|
N/A
|
|
Weight
|
0.17kg
|
