Retro Fit - 3 Way Corner 116R-D (48.3mm)

from only £7.20 (ex.VAT) £8.64 (inc.VAT)
Average: reviews


Available to buy
Available for Click and Collect
Product Code:116RD
Bulk Discounts ex. VAT inc. VAT
Order 1 to 24 Clamps  £8.80 £10.56
Order 25 to 49 Clamps  £7.90 £9.48
Order over 50 Clamps  £7.20 £8.64
View more:

Tube Clamps - Retro Fit 3 Way Corner 116R-D (48.3mm)

Tube Clamp or Pipe Clamps for 48.3mm tube. Retro fit for easy attachment to existing 48.3mm tube. Complies with B.S. EN1461. Also known by the term Key Clamps.

Manufacturing Standard B.S. EN1461.
Material Blackheart malleable iron casting (BS EN 1562:1997) using grade B32-10 material with a hot dipped galvanised finish (BS EN 1461:1999)
Allen Key Size 3/8
Weight 0.62kg

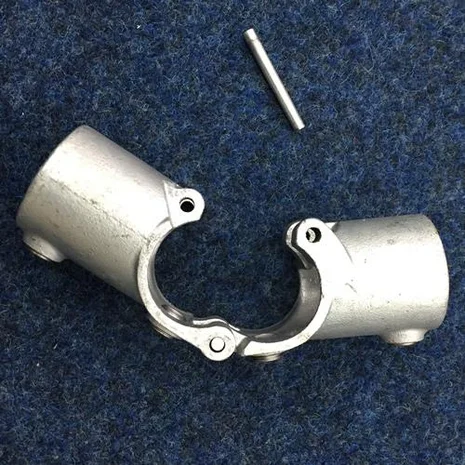

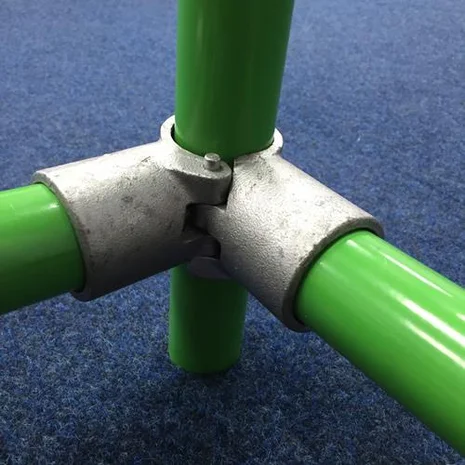

A 90° 3 way corner joint with the vertical passing through the Q clamp fitting. Typical use is on straight and level guardrail for connecting the mid/lower rail to the vertical at a 90° corner. This fitting can be added to existing rails by removing the Kingpin and opening the fitting.

Equivalent product
 Interclamp  117X
 Keeklamp  21/26
 Fast Clamp   N/A
 Alvin  N/A

All clamps come with stainless steel grub screws fitted. If full tightened using a ratchet key to a torque of 4.1kg/m (29ft/lb), the grub screw is capable of withstanding an applied slipload of 900kg.
