Tube Clamps - Retro Fit Side Outlet Tee 176R-D (48.3mm)
Tube Clamp or Pipe Clamps for 48.3mm tube. This malleable iron casting is Retro fit for easy attachment to existing 48.3mm tube. Complies with B.S. EN1461. Also known by the term Key Clamps.
| Info | Detail |
|---|
| Manufacturing Standard |
B.S. EN1461. |
| Material |
Blackheart malleable iron casting (BS EN 1562:1997) using grade B32-10 material with a hot dipped galvanised finish (BS EN 1461:1999) |
| Allen Key Size |
3/8 |
| Weight |
0/.61g |

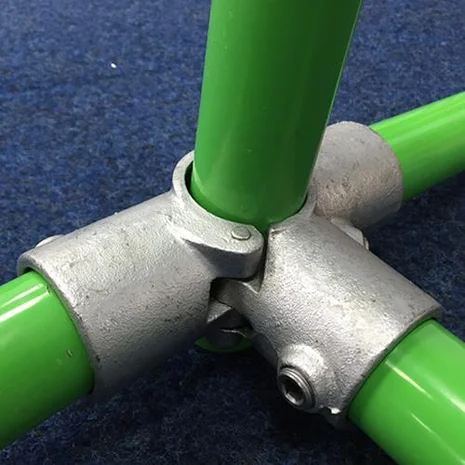

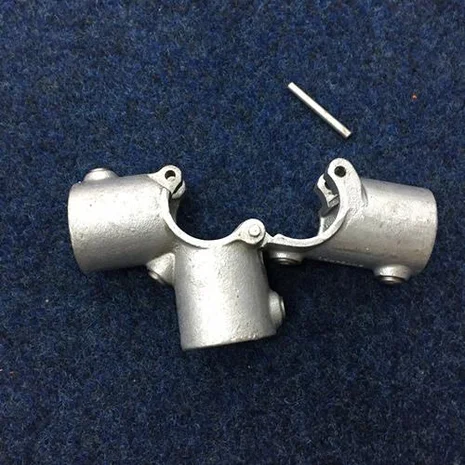

Three way side outlet tee used to join 3 tubes at 90° to each other with the vertical passing through the fitting. Typical use would be on structures such as market stall or play frames.This fitting can be added to existing rails by removing the Kingpin and opening the fitting.
| Equivalent product | |
|---|
| Interclamp |
117Y |
| Keeklamp |
A35 |
| Fast Clamp |
N/A |
| Alvin |
N/A
|
All clamps come with stainless steel grub screws fitted. If full tightened using a ratchet key to a torque of 4.1kg/m (29ft/lb), the grub screw is capable of withstanding an applied slipload of 900kg.
