Download PDF: Download Specification
TUV Certificate: Download Specification

Single Male Swivel 173MD (48.3mm)

from only £2.10 (ex.VAT) £2.52 (inc.VAT)
Average: 1 reviews







Available to buy
Product Code:173MD
Bulk Discounts ex. VAT inc. VAT
Order 1 to 25 Tube Clamps  £2.55 £3.06
Order 26 to 49 Tube Clamps  £2.30 £2.76
Order over 50 Tube Clamps  £2.10 £2.52

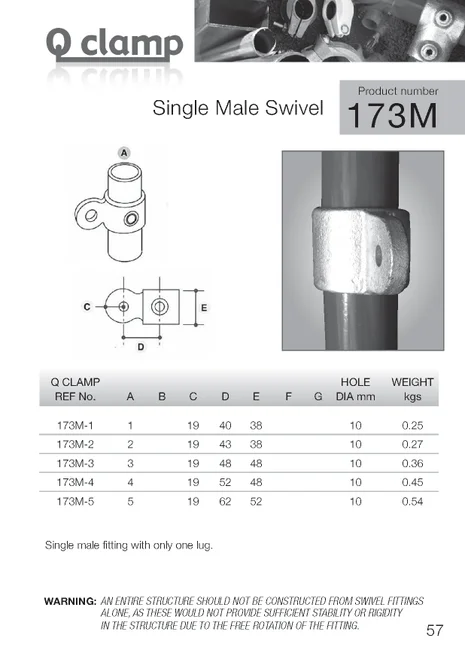

Single Male Swivel 173MD (48.3mm)

This single male swivel is a malleable iron casting that complies with B.S. EN1461. These tubeclamps are also know by the term key clamps.

InfoDetail
Manufacturing Standard B.S. EN1461.
Material Blackheart malleable iron casting (BS EN 1562:1997) using grade B32-10 material with a hot dipped galvanised finish (BS EN 1461:1999)
Allen Key Size 1/4
Weight 0.4kg

A single male swivel is used as a spare/replacement for the 173D single swivel combination, or can be used in manufacturing.

Equivalent product
 Interclamp  104
 Keeklamp  25
 Fast Clamp   C04
 Alvin  A5

All clamps come with stainless steel grub screws fitted. If full tightened using a ratchet key to a torque of 4.1kg/m (29ft/lb), the grub screw is capable of withstanding an applied slipload of 900kg.
