90° Crossover 161-B (33.7mm)

from only £2.20 (ex.VAT) £2.64 (inc.VAT)
Average: 1 reviews












Available to buy
Available for Click and Collect
Product Code:161B
Bulk Discounts ex. VAT inc. VAT
Order 1 to 25 Tube Clamps  £2.70 £3.24
Order 26 to 49 Tube Clamps  £2.55 £3.06
Order over 50 Tube Clamps  £2.20 £2.64
View more:


90° Crossover 161-B (33.7mm)

Tube Clamp or Key Clamps for 33.7mm hand rail tube. This malleable iron casting is also available in 48.3mm tube clamps & 42.4mm tube clamps. Complies with B.S. EN1461. And are also known by the term pipe clamps.

InfoDetail
Manufacturing Standard B.S. EN1461.
Material Blackheart malleable iron casting (BS EN 1562:1997) using grade B32-10 material with a hot dipped galvanised finish (BS EN 1461:1999)
Allen Key Size 1/4
Weight 0.36kg

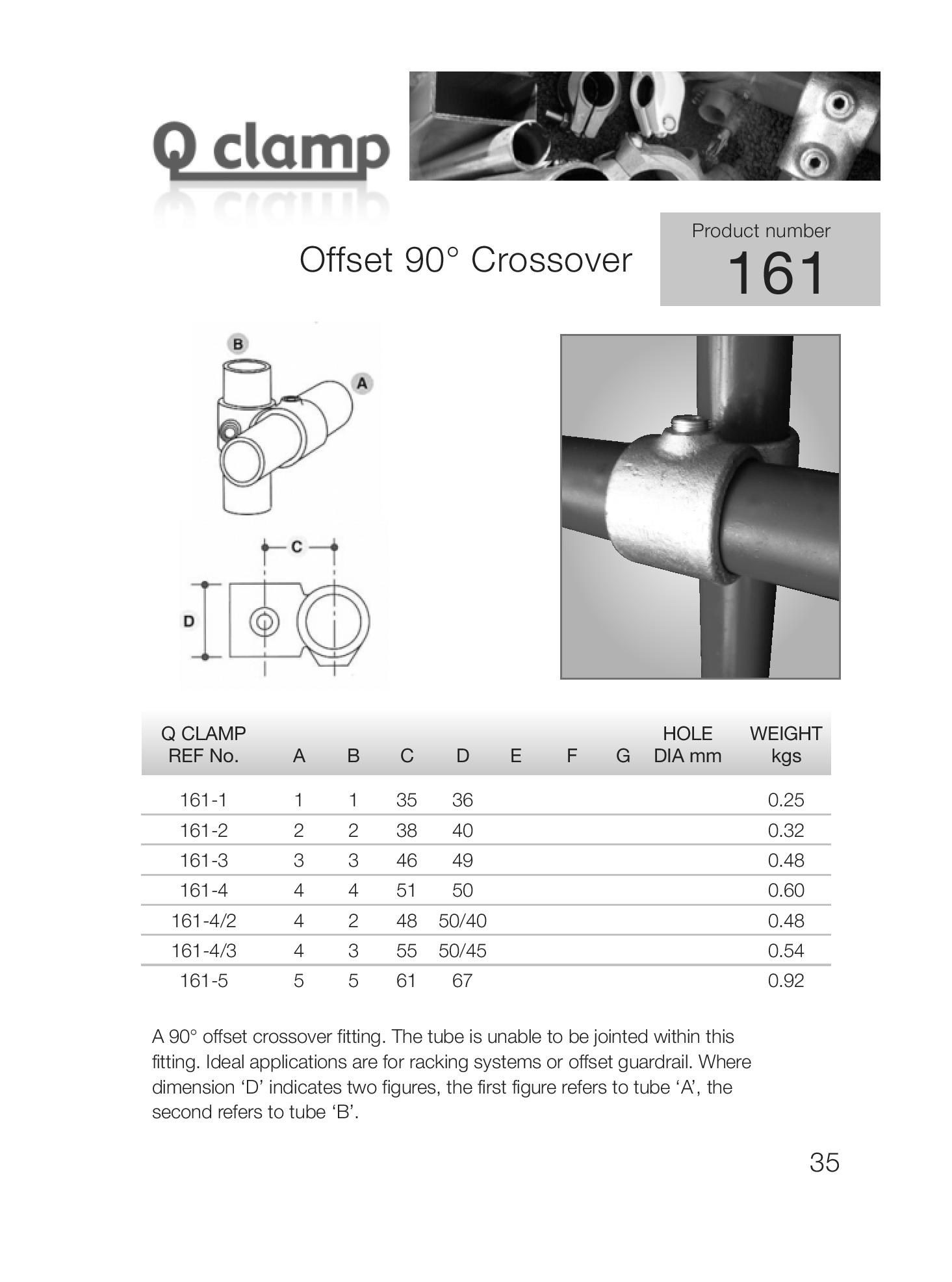

A 90° offset crossover fitting. The tube is unable to be jointed within this fitting. Ideal applications are for racking systems or offset guardrail.

Equivalent product
 Interclamp  161
 Keeklamp  45
 Fast Clamp   C40
 Alvin  A28

All clamps come with stainless steel grub screws fitted. If full tightened using a ratchet key to a torque of 4.1kg/m (29ft/lb), the grub screw is capable of withstanding an applied slipload of 900kg.
