Base Flange with Kick Plate 247-D (48.3mm)

from only £9.25 (ex.VAT) £11.10 (inc.VAT)
Average: 2 reviews







Available to buy
Available for Click and Collect
Add To Basket
Product Code:247D
Bulk Discounts ex. VAT inc. VAT
Order 1 to 24 clamps  £10.65 £12.78
Order 24 to 49 clamps  £9.90 £11.88
Order over 50 clamps  £9.25 £11.10
View more:


Tube Clamps - Base Flange with Kick Plate

Tube Clamp or Pipe Clamps for 48.3mm tube. This malleable iron casting is also available in 33.7mm tube clamps & 42.4mm Tube Clamp. Complies with B.S. EN1461. And are also known by the term Key Clamps.

To secure this fitting we recommend a 16mm through bolt for concrete applications.

InfoDetail
Manufacturing Standard B.S. EN1461.
Material Blackheart malleable iron casting (BS EN 1562:1997) using grade B32-10 material with a hot dipped galvanised finish (BS EN 1461:1999)
Allen Key Size 3/8
Weight 2.12kg

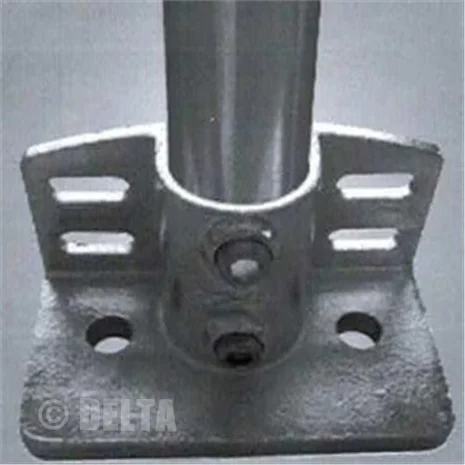

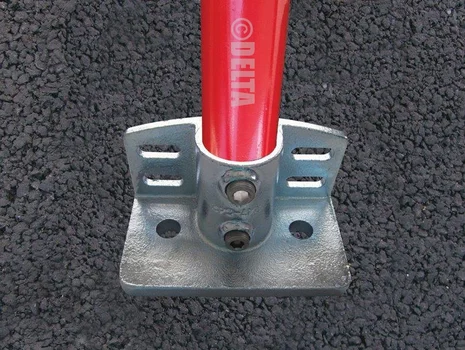

The Base Flange with Kick Plate tube clamp is ideal for guardrailing and balaustrading applications where the addition of a kick plate is required. The slotted holes allow for adjustment and ease of fitting.

Equivalent product
 Interclamp  -
 Keeklamp  -
 Fast Clamp   -
 Alvin  -

We do not recommend pre-drilling as there can be irregularities in casting that can produce small variations in the size of the holes.

All clamps come with stainless steel grub screws fitted. If full tightened using a ratchet key to a torque of 4.1kg/m (29ft/lb), the grub screw is capable of withstanding an applied slipload of 900kg.
