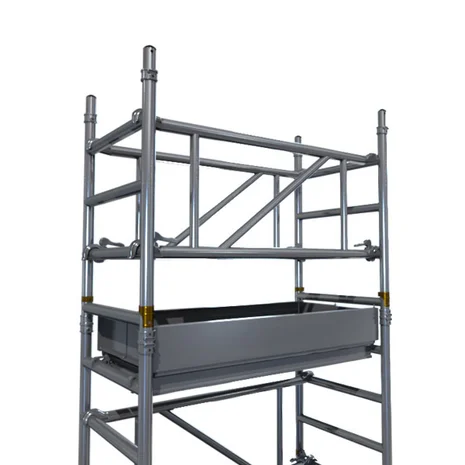

BoSS SOLO 700 0.7m (W) x 1.3m (L) 3.2m Platform Height

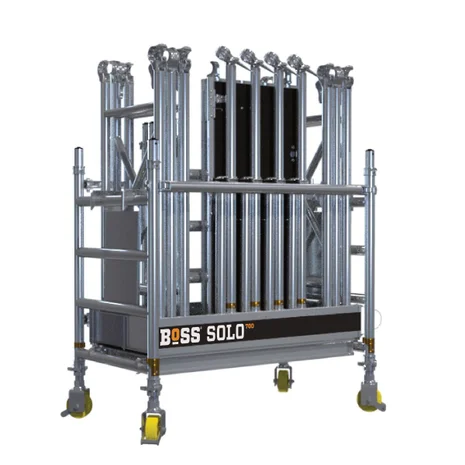

The BoSS SOLO700 access tower is simple to assemble and operate by one person. The access tower can be dismantled to a compact size for convenient store in its own rolling trolley made from the base unit and one platform for easy transportation. The 61402200 rapid build single person access tower has a compact base unit 0.7m wide and 2.2m in platform height. The patented camlock guardrail frames means this tower uses less components than a traditional Boss tower. Part of the BoSS700 range - Interchangeable components for easy tower conversation.
FEATURES
- Designed to be quick and safe to assemble by one person
- Base-unit forms trolley for convenient storage and transportation
- Compact base size fits through standard doorways
- Variable working heights up to 6.2m
- 0.25m rung pitch for versatile working height positions
- One piece aluminium folding toe board set
- Ideal for use in public buildings and retail locations
- Part of the BoSS700 range so guaranteed interchangeability
- Professional duty rating 550kg
PACKAGE CONTENTS
| PART NUMBER | QUANTITY | DESCRIPTION |
|---|
| 32842300 |
4 |
Castor 150mm (6 inch) |
| 33551300 |
4 |
Adjustable Leg |
| 67011000 |
4 |
End Frame 4 Rung 1m (H) x 0.7m (W) |
| 67020100 |
1 |
Folding Base Unit 1.3m (H) x 0.7m (W) |
| 67030100 |
3 |
BoSS Camlock Guardrail Frame 1.3m (W) |
| 67070100 |
1 |
Trapdoor Deck 1.3m (L) |
| 35651300 |
1 |
Horizontal Brace 1.3m (L) |
| 67050100 |
1 |
Aluminium Toe Board 1.3m (L) |
| 67060100 |
2 |
Assembly Bracket |
| 67040100 |
4 |
SP4 Fixed Stabiliser c/w Saddle Blade Clamp |
SPECIFICATIONS
| FEATURE | SIZE / DETAILS |
|---|
| Tower Width (m) |
0.7m |
| Total Length (m) |
1.3m |
| Platform Length (m) |
1.3m |
| Platform Width (m) |
0.6m |
| Platform Height (m) |
2.2m |
| Max. Safe Working Load per Platform (kg) |
275kg |
| Safe Working Height (m) |
4.2m |
| Total Tower Height (m) |
3.2m |
| Certifications |
BS EN1004:2004 |
| Style |
BoSS SOLO 700 |
| Tower Style |
Camlock Guardrail |
| Material |
Aluminium |
| Approx. Product Weight (kg) |
92.8kg |
*Safe Working Height based on a 2m height and reach of a person whilst standing on the highest level platform.
