Cup System (compatible with Cuplock) Ledger - 2.5m high grade galvanised steel

£13.75 (ex.VAT) £16.50 (inc.VAT) was £14.90 (ex.VAT) (7.72% OFF)
Average: 1 reviews
Available to buy
Available for Click and Collect
Product Code:C25LD

Cup System Scaffolding

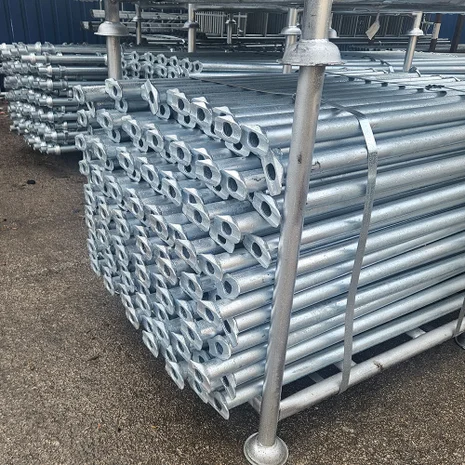

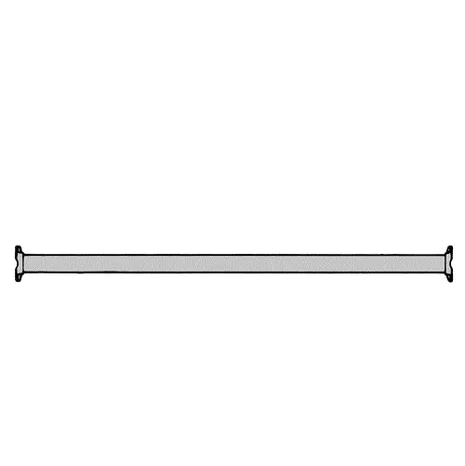

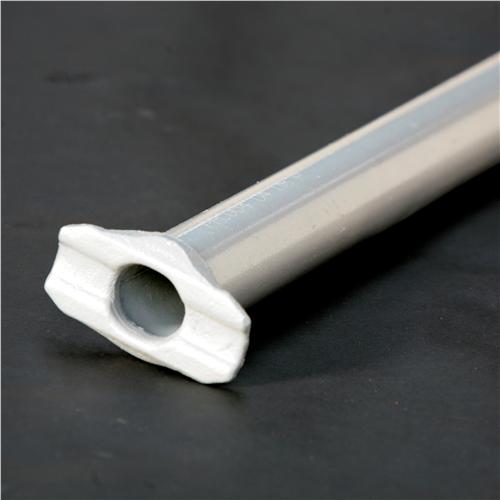

Cuplock Compatible 2.5m Ledgers are made from high grade galvanised steel tubing. Cup System Ledgers have a forged blade at both ends, each horizontal locates in the bottom cup and is secured by the top cup with a hammer


Cup System Scaffolding - Cuplock - Wedge-Lock - Scaflok - Kwikstage

Cuplock scaffolding is the most popular scaffolding system in the world. In common with other ‘system scaffolding’ such as wedge-lock, Galv-Lock and Kwikstage, Cuplock has a number of benefits over conventional scaffolding.

InfoDetail
Length (m) 2.5m
Overall Length (mm) 2452mm
Weight (kg) 9.5kg
Wall Thickness 3.2mm



InfoDetail
Simple Fast and simple to erect with only four component fastenings
Lightweight Manufactured using 3.2mm high grade steel, Cuplock/cup system scaffolding is 20% lighter than standard 4mm scaffolding tube
Economical With only three main components
Fast Up to 30% faster than traditional scaffolding
Durable Hot dipped galvanising provides a low maintenance, long life
Versatile With 500mm ‘cup intervals on the verticals, Cuplock scaffolding is extremly versatile Façade, Circular, Birdcages and Staircases
Flexible 0.6m to 3.0m bays using boards or battens



Why Buy from Scaffolding Direct?
  • All products are in our warehouse
  • Nationwide Delivery
  • Track your delivery by courier.
  • Bulk Discounts.
  • UK based Customer Service

Please note:
Prices shown are for our own brand 'Cup System Scaffolding' which is fully compatible with SGB Cuplock.

Ledger sizes also available: 1.8m, 1.3m, 0.9m, 0.6m

You may also be intrested in timber battens and scaffolding tools.

Please email info@scaffolding-direct.co.uk with a list of requirements for an accurate quote including delivery.

Technical Spec: Download Specification
