Download PDF: Download Specification
TUV Certificate: Download Specification

Double Mesh Clip 171-D (48.3mm)

from only £1.15 (ex.VAT) £1.38 (inc.VAT)
Average: reviews


Available to buy
Available for Click and Collect
Product Code:171D
Bulk Discounts ex. VAT inc. VAT
Order 1 to 25 Tube Clamps  £1.40 £1.68
Order 26 to 49 Tube Clamps  £1.30 £1.56
Order over 50 Tube Clamps  £1.15 £1.38
View more:

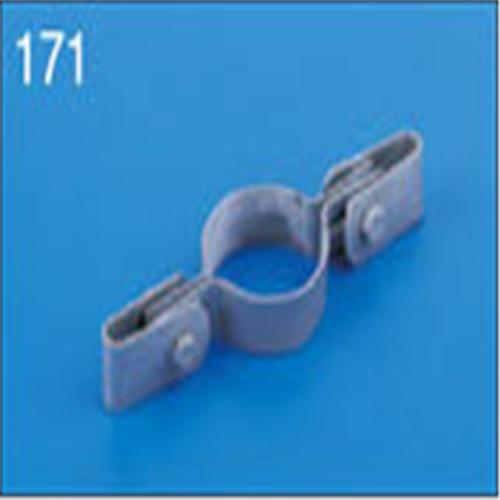

Tube Clamps - Double Mesh Clip 171-D (48.3mm)

Tube Clamp or Pipe Clamps for 48.3mm tube. This malleable iron casting is also available in 33.7mm tube clamps & 42.4mm Tube Clamp. Complies with B.S. EN1461. And are also known by the term Key Clamps.

Manufacturing Standard B.S. EN1461.
Material Blackheart malleable iron casting (BS EN 1562:1997) using grade B32-10 material with a hot dipped galvanised finish (BS EN 1461:1999)
Allen Key Size 3/8
Weight 0.13kg

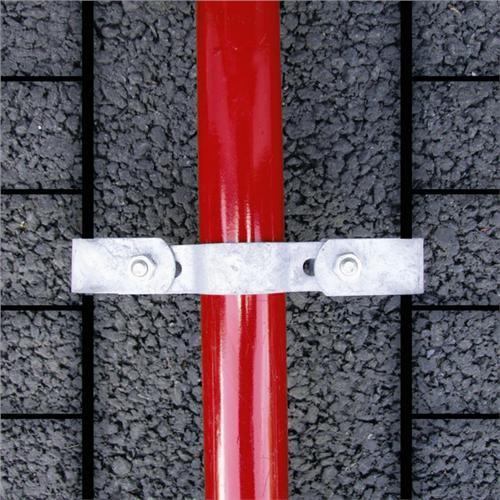

Double Mesh clip. The slotted design of the panel clip enables adjustment in the location of the mesh panels. Supplied with M6 x 30mm long nut and bolt.

Equivalent product
 Interclamp  171
 Keeklamp  82
 Fast Clamp   C67
 Alvin  A72

All clamps come with stainless steel grub screws fitted. If full tightened using a ratchet key to a torque of 4.1kg/m (29ft/lb), the grub screw is capable of withstanding an applied slipload of 900kg.
