Download PDF: Download Specification
TUV Certificate: Download Specification

Double Swivel Combination 167-D (48.3mm)

from only £8.15 (ex.VAT) £9.78 (inc.VAT)
Average: 2 reviews


Available to buy
Available for Click and Collect
Product Code:167D
Bulk Discounts ex. VAT inc. VAT
Order 1 to 25 Tube Clamps  £9.95 £11.94
Order 26 to 49 Tube Clamps  £8.95 £10.74
Order over 50 Tube Clamps  £8.15 £9.78
View more:

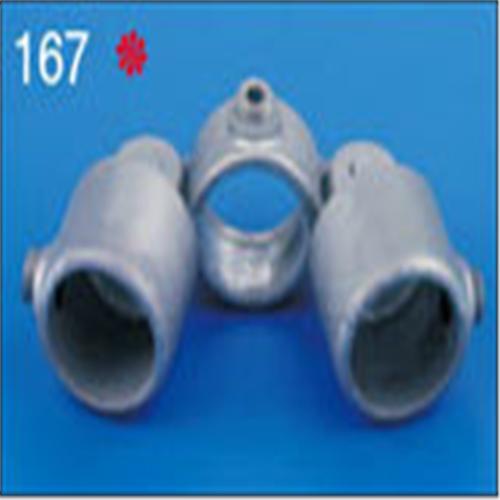

Tube Clamps - Double Swivel Combination 167-D

Tube Clamp or Pipe Clamps for 48.3mm tube. This malleable iron casting is also available in 33.7mm tube clamps & 42.4mm Tube Clamp. Complies with B.S. EN1461. And are also known by the term Key Clamps.

Manufacturing Standard B.S. EN1461.
Material Blackheart malleable iron casting (BS EN 1562:1997) using grade B32-10 material with a hot dipped galvanised finish (BS EN 1461:1999)
Allen Key Size 3/8
Weight 1.45kg

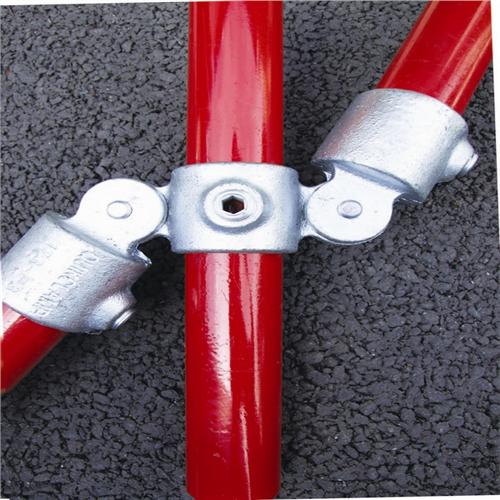

Complete double swivel with the swivel connectors at 180° to each other. Each swivel has a travel of approximately 85° from the horizontal in both vertical directions.

Equivalent product
 Interclamp  144
 Keeklamp  64
 Fast Clamp   C13
 Alvin  A14

All clamps come with stainless steel grub screws fitted. If full tightened using a ratchet key to a torque of 4.1kg/m (29ft/lb), the grub screw is capable of withstanding an applied slipload of 900kg.
