Double Sided Fixed Bracket 198-D (48.3mm)

from only £2.85 (ex.VAT) £3.42 (inc.VAT)
Average: 5 reviews
Currently Unavailable
Request Stock Updates
Product Code:198D
Bulk Discounts ex. VAT inc. VAT
Order 1 to 25 Tube Clamps  £3.45 £4.14
Order 26 to 49 Tube Clamps  £3.10 £3.72
Order over 50 Tube Clamps  £2.85 £3.42
View more:

Tube Clamps - Double Sided Fixed Bracket 198-D

Tube Clamp or Pipe Clamps for 48.3mm tube. This malleable iron casting is also available in 33.7mm tube clamps & 42.4mm Tube Clamp. Complies with B.S. EN1461. And are also known by the term Key Clamps.

To secure this fitting we recommend a 6mm wood screw for furniture & wood applications, and a 7.5mm multi fix screw or 8mm shield anchor for concrete applications.

InfoDetail
Manufacturing Standard B.S. EN1461.
Material Blackheart malleable iron casting (BS EN 1562:1997) using grade B32-10 material with a hot dipped galvanised finish (BS EN 1461:1999)
Allen Key Size 3/8
Weight 0.43kg

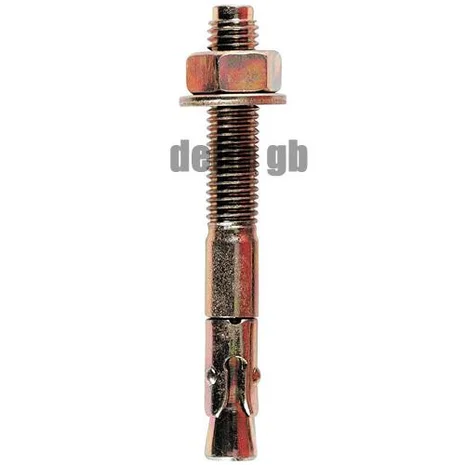

To secure this fixing you can use an M10 through bolt.

Equivalent product
 Interclamp  -
 Keeklamp  -
 Fast Clamp   -
 Alvin  -

We do not recommend pre-drilling as there can be irregularities in casting that can produce small variations in the size of the holes.

All clamps come with stainless steel grub screws fitted. If full tightened using a ratchet key to a torque of 4.1kg/m (29ft/lb), the grub screw is capable of withstanding an applied slipload of 900kg.

Technical Spec: Technical Spec
TUV Certificate: Test Cert
