Ground Socket 134-D (48.3mm)

from only £11.20 (ex.VAT) £13.44 (inc.VAT)
Average: 3 reviews







Available to buy
Product Code:134D
Bulk Discounts ex. VAT inc. VAT
Order 1 to 25 Tube Clamps  £12.95 £15.54
Order 26 to 49 Tube Clamps  £11.95 £14.34
Order over 50 Tube Clamps  £11.20 £13.44
View more:

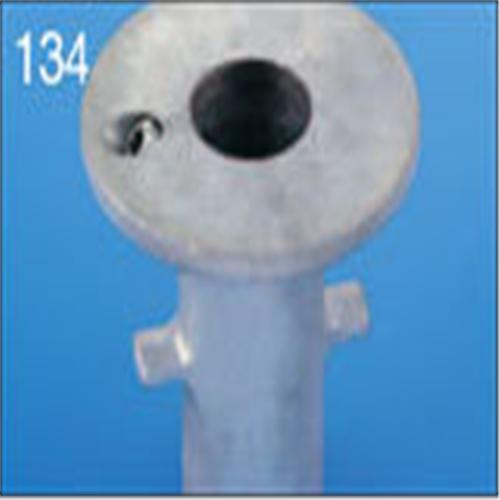

Tube Clamps - Ground Socket 134-D (48.3mm)

Tube Clamp or Pipe Clamps for 48.3mm tube. This malleable iron casting is also available in 33.7mm tube clamps & 42.4mm Tube Clamp. Complies with B.S. EN1461. And are also known by the term Key Clamps.

InfoDetail
Manufacturing Standard B.S. EN1461.
Material Blackheart malleable iron casting (BS EN 1562:1997) using grade B32-10 material with a hot dipped galvanised finish (BS EN 1461:1999)
Allen Key Size 3/8
Weight 1.96kg

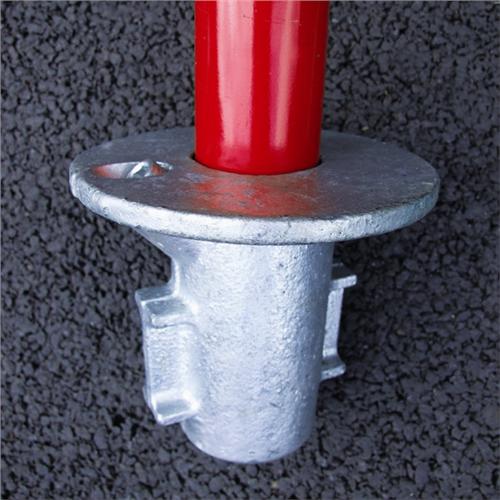

A ground socket cast into concrete which is flush to the finished ground level. The upright is held in place using the grubscrew but can easily be removed without leaving any obstructions.

Equivalent product
 Interclamp  134
 Keeklamp  66
 Fast Clamp   C17
 Alvin  A17

All clamps come with stainless steel grub screws fitted. If full tightened using a ratchet key to a torque of 4.1kg/m (29ft/lb), the grub screw is capable of withstanding an applied slipload of 900kg.
