Handrail Bracket 143-B (33.7mm)

from only £2.80 (ex.VAT) £3.36 (inc.VAT)
Average: 5 reviews










Available to buy
Available for Click and Collect
Product Code:143B
Bulk Discounts ex. VAT inc. VAT
Order 1 to 25 Tube Clamps  £3.45 £4.14
Order 26 to 49 Tube Clamps  £3.25 £3.90
Order over 50 Tube Clamps  £2.80 £3.36
View more:

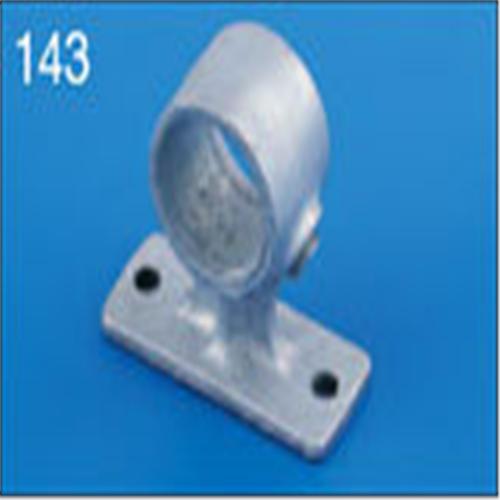

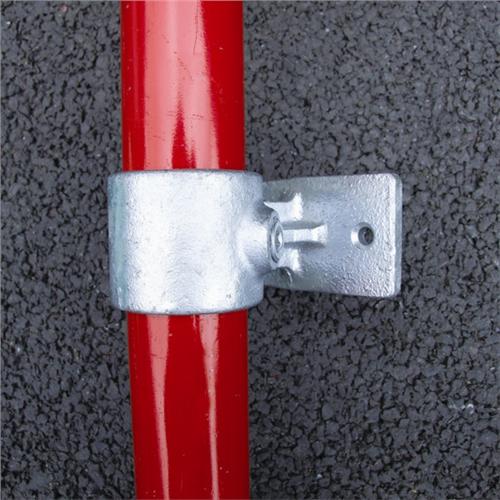

Handrail Bracket 143-B (33.7mm)

Tube Clamp or Key Clamps for 33.7mm hand rail tube. This malleable iron casting is also available in 48.3mm tube clamps & 42.4mm tube clamps. Complies with B.S. EN1461. And are also known by the term pipe clamps.

To secure this fitting we recommend a 5mm wood screw for furniture & wood applications, and a 7.5mm multi fix screw or 8mm shield anchor for concrete applications.

InfoDetail
Manufacturing Standard B.S. EN1461.
Material Blackheart malleable iron casting (BS EN 1562:1997) using grade B32-10 material with a hot dipped galvanised finish (BS EN 1461:1999)
Allen Key Size 1/4
Weight 0.49kg

Designed for Steel tube. Handrails, Walkways, clothes rails, shelving, racking, Guardrails, Balustrades.

Equivalent product
 Interclamp  143
 Keeklamp  70
 Fast Clamp   C16
 Alvin  A34

We do not recommend pre-drilling as there can be irregularities in casting that can produce small variations in the size of the holes.

All clamps come with stainless steel grub screws fitted. If full tightened using a ratchet key to a torque of 4.1kg/m (29ft/lb), the grub screw is capable of withstanding an applied slipload of 900kg.
