Hook 182-D (48.3mm)

from only £1.90 (ex.VAT) £2.28 (inc.VAT)
Average: reviews









Available to buy
Product Code:182D
Bulk Discounts ex. VAT inc. VAT
Order 1 to 25 Tube Clamps  £2.35 £2.82
Order 26 to 49 Tube Clamps  £2.10 £2.52
Order over 50 Tube Clamps  £1.90 £2.28
View more:

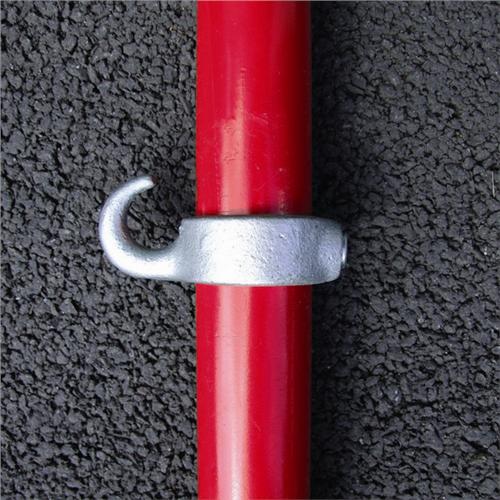

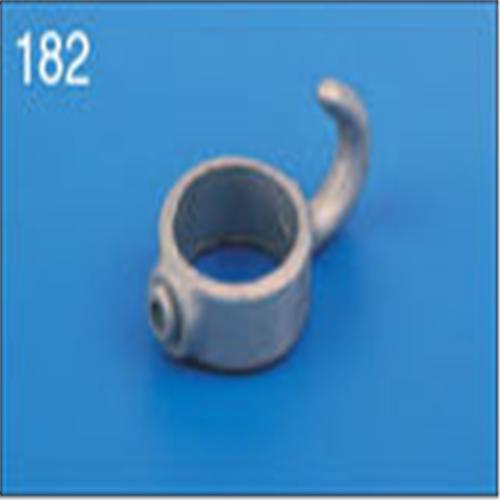

Tube Clamps - Hook 182-D (48.3mm)

Tube Clamp or Pipe Clamps for 48.3mm tube. This malleable iron casting is also available in 33.7mm tube clamps & 42.4mm Tube Clamp. Complies with B.S. EN1461. And are also known by the term Key Clamps.

InfoDetail
Manufacturing Standard B.S. EN1461.
Material Blackheart malleable iron casting (BS EN 1562:1997) using grade B32-10 material with a hot dipped galvanised finish (BS EN 1461:1999)
Allen Key Size 3/8
Weight 0.30kg

Chain hook. Used to locate chains across openings. Not for permanent chain location. Recommended that chain is fixed using a clamp fitting 173 and held  with a nut and bolt.

Equivalent product
 Interclamp  182
 Keeklamp  76
 Fast Clamp   C33
 Alvin  A64

All clamps come with stainless steel grub screws fitted. If full tightened using a ratchet key to a torque of 4.1kg/m (29ft/lb), the grub screw is capable of withstanding an applied slipload of 900kg.
