3 Way Corner 116-B (33.7mm)

from only £2.95 (ex.VAT) £3.54 (inc.VAT)
Average: 6 reviews











Available to buy
Available for Click and Collect
Product Code:116B
Bulk Discounts ex. VAT inc. VAT
Order 1 to 25 Tube Clamps  £3.70 £4.44
Order 26 to 49 Tube Clamps  £3.50 £4.20
Order over 50 Tube Clamps  £2.95 £3.54
View more:

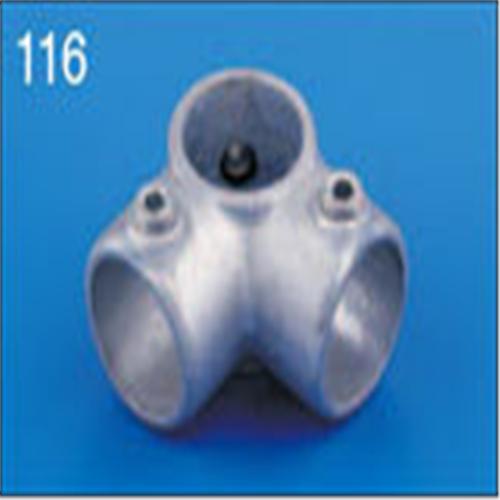

3 Way Corner 116-B (33.7mm)

Tube Clamp or Key Clamps for 33.7mm hand rail tube. This malleable iron casting is also available in 48.3mm tube clamps42.4mm tube clamps and 26.9mm tube clamps. Complies with B.S. EN1461. And are also known by the term pipe clamps.

InfoDetail
Manufacturing Standard B.S. EN1461.
Material Blackheart malleable iron casting (BS EN 1562:1997) using grade B32-10 material with a hot dipped galvanised finish (BS EN 1461:1999)
Allen Key Size 1/4
Weight 0.49kg

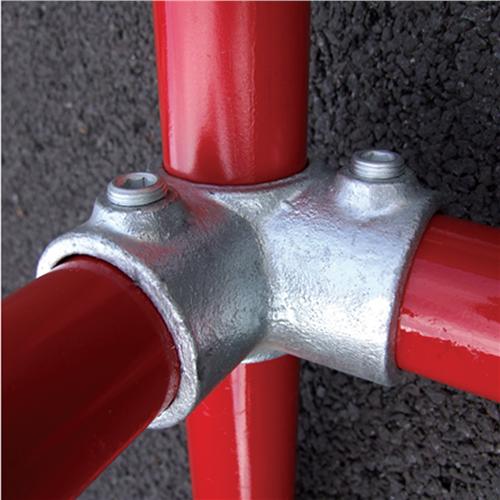

A 90° 3 way corner joint with the vertical passing through the Q clamp fitting. Typical use is on straight and level guardrail for connecting the mid/lower rail to the vertical at a 90° corner.

Equivalent product
 Interclamp  116
 Keeklamp  21
 Fast Clamp   C21
 Alvin  A20

All clamps come with stainless steel grub screws fitted. If full tightened using a ratchet key to a torque of 4.1kg/m (29ft/lb), the grub screw is capable of withstanding an applied slipload of 900kg.
