Socket Cross 119-B (33.7mm)

from only £3.20 (ex.VAT) £3.84 (inc.VAT)
Average: 6 reviews













Available to buy
Available for Click and Collect
Product Code:119B
Bulk Discounts ex. VAT inc. VAT
Order 1 to 25 Tube Clamps  £3.95 £4.74
Order 26 to 49 Tube Clamps  £3.75 £4.50
Order over 50 Tube Clamps  £3.20 £3.84
View more:

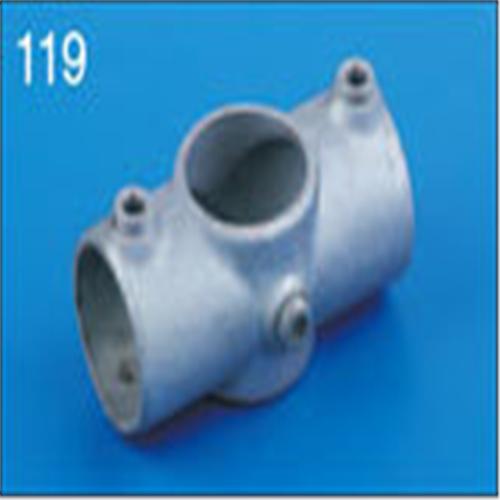

Socket Cross 119-B (33.7mm)

Tube Clamp or Key Clamps for 33.7mm hand rail tube. This malleable iron casting is also available in 48.3mm tube clamps42.4mm tube clamps and 26.9mm tube clamps. Complies with B.S. EN1461. And are also known by the term pipe clamps.

InfoDetail
Manufacturing Standard B.S. EN1461.
Material Blackheart malleable iron casting (BS EN 1562:1997) using grade B32-10 material with a hot dipped galvanised finish (BS EN 1461:1999)
Allen Key Size 1/4
Weight 0.49kg

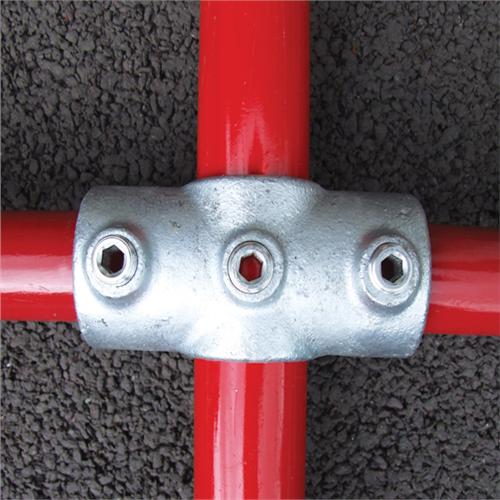

A 90° Sokcet Cross between a vertical and two horizontals. Used on straight & level guardrail to connect the mid/low rails to the upright. Vertical must remain continuous with cross rails cut.

Equivalent product
 Interclamp  119
 Keeklamp  26
 Fast Clamp   C22
 Alvin  A22

All clamps come with stainless steel grub screws fitted. If full tightened using a ratchet key to a torque of 4.1kg/m (29ft/lb), the grub screw is capable of withstanding an applied slipload of 900kg.
