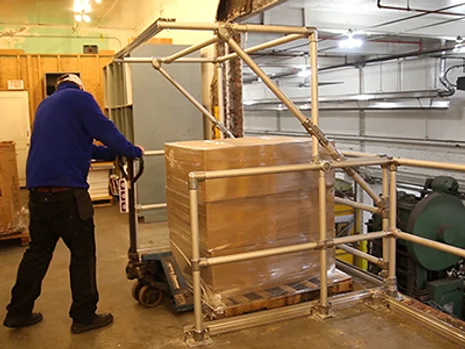

Type B Narrow Model Pallet Gate (Galvanised)

£1008.05 (ex.VAT) £1209.66 (inc.VAT)
Average: reviews
Available to buy
Product Code:SGPGTYBGV
View more:

Type B Narrow Model Pallet Gate (Galvanised)

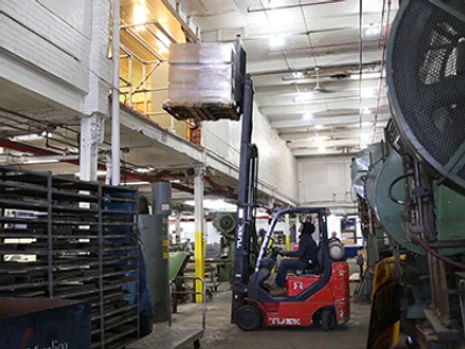

The range of KEE GATE pallet gates provides a safe working area for employees on mezzanine floors or raised working areas.  The gates can be linked seamlessly into an existing guardrail or barrier to provide complete protection while goods are being transported up or down from the mezzanine.

The range includes four different models to suit varying types of operational requirements and is lightweight and counter-balanced for ease of operation.

The narrow frame pallet gate is ideal for mezzanines where space is limited. The design of this gate means that less floorspace is required to load and unload.  Balances for a positive open and close action, the pallet gates includes a toe-board mounted on the mezzanine edge site for enhanced safety.

The narrow frame pallet gate can accommodate loads up to 1.4m x 1.48m with a maximum height capacity of 1.8m.

The pallet gate range has been cycle tested for 50,000 openings to ensure their durability and salt spray tested for corrosion resistance to 672 hours.  This allows ensure continuous operation, even in corrosive environments.

  • EN 14122-3 compliant
  • Available in galvanised steel and aluminium
  • No welded parts so individual fittings can be easily replace if damaged
  • Constructed using Kee Klamp® and Kee Lite® fittings
  • Components are TUV approved for quality assurance
  • Extensive testing for guaranteed durability
  • Supplied part assembled for ease of on site installation

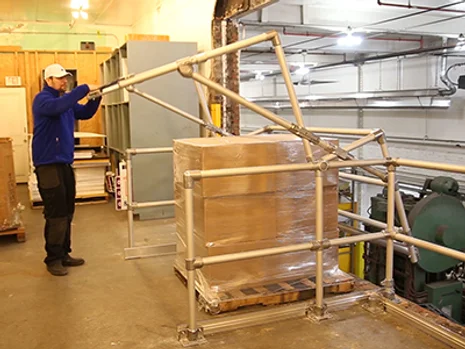

Each gate is counter-balanced for ease of use and to ensure a positive open and close.

We can also supply this gate powdercoated. Please contact us on 0151 678 7997 or via email sales@deltagb.com to enquire.
