Corner Swivel Combination 148-B (33.7mm)

from only £2.65 (ex.VAT) £3.18 (inc.VAT)
Average: reviews









Available to buy
Available for Click and Collect
Product Code:148B
Bulk Discounts ex. VAT inc. VAT
Order 1 to 25 Tube Clamps  £3.30 £3.96
Order 26 to 49 Tube Clamps  £3.10 £3.72
Order over 50 Tube Clamps  £2.65 £3.18
View more:

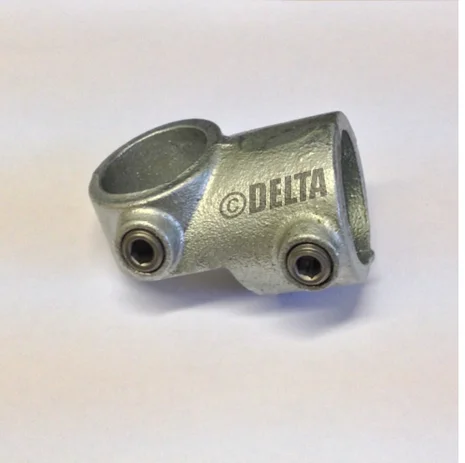

Corner Swivel Combination 148-B (33.7mm)

Tube Clamp or Key Clamps for 33.7mm hand rail tube. This malleable iron casting is also available in 48.3mm tube clamps & 42.4mm tube clamps. Complies with B.S. EN1461. And are also known by the term pipe clamps.

InfoDetail
Manufacturing Standard B.S. EN1461.
Material Blackheart malleable iron casting (BS EN 1562:1997) using grade B32-10 material with a hot dipped galvanised finish (BS EN 1461:1999)
Allen Key Size 1/4
Weight 0.32kg

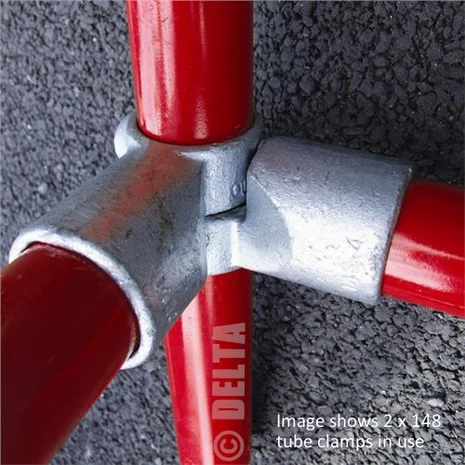

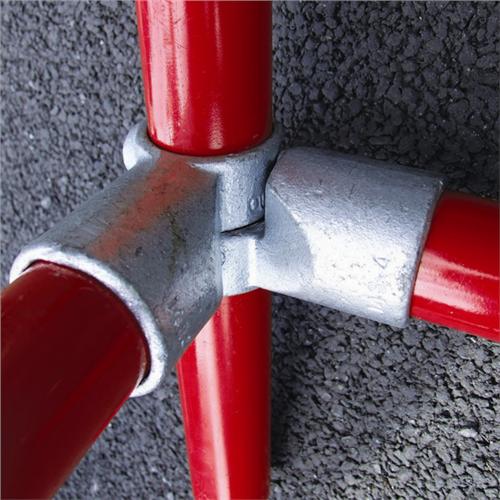

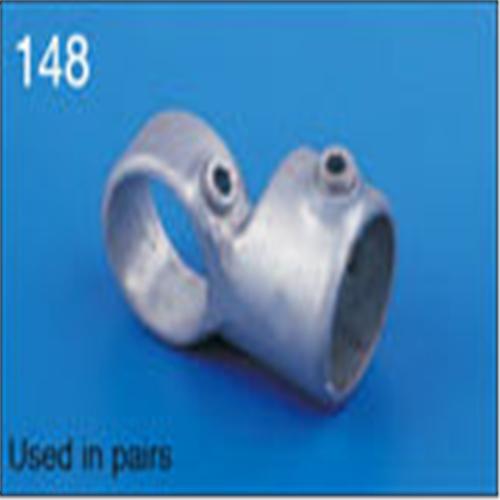

Image shows fitting used in a pair to create angles between 85° and 235°. A central tube is required to join the fittings together to create the angle.  Price is per single item

Equivalent product
 Interclamp  148
 Keeklamp  19
 Fast Clamp   C25
 Alvin  A21
