Corner Swivel Combination 148-C (42.4mm)

from only £3.80 (ex.VAT) £4.56 (inc.VAT)
Average: reviews











Available to buy
Available for Click and Collect
Add To Basket
Product Code:148C
Bulk Discounts ex. VAT inc. VAT
Order 1 to 25 Tube Clamps  £4.75 £5.70
Order 26 to 49 Tube Clamps  £4.25 £5.10
Order over 50 Tube Clamps  £3.80 £4.56
View more:

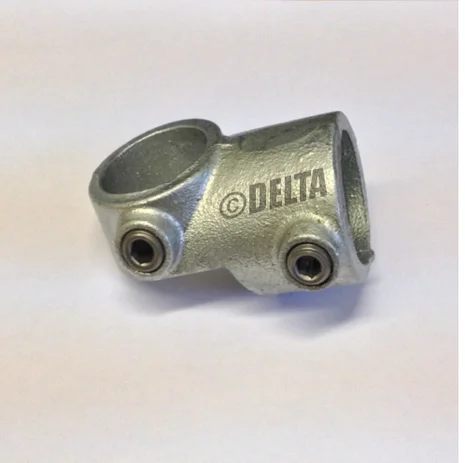

Tube Clamps, Corner Swivel Combination 148-C (42.4mm)

Tube Clamp or Pipe Clamps for 42.4mm tube. This malleable iron casting is also available in 48.3mm tube clamps & 33.7mm Tube Clamp. Complies with B.S. EN1461. And are also known by the term Key Clamps.

InfoDetail
Manufacturing Standard B.S. EN1461.
Material Blackheart malleable iron casting (BS EN 1562:1997) using grade B32-10 material with a hot dipped galvanised finish (BS EN 1461:1999)
Allen Key Size 3/8
Weight 0.54kg

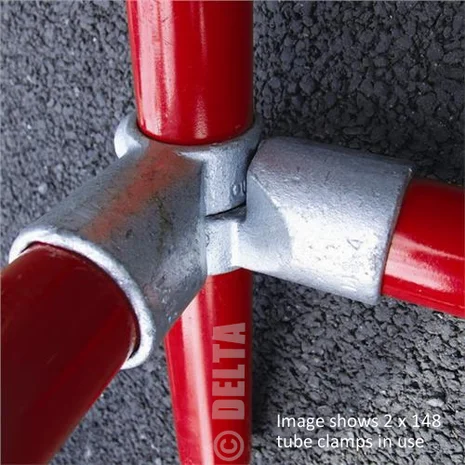

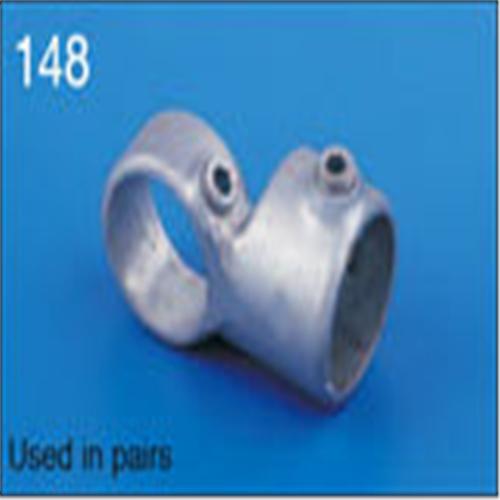

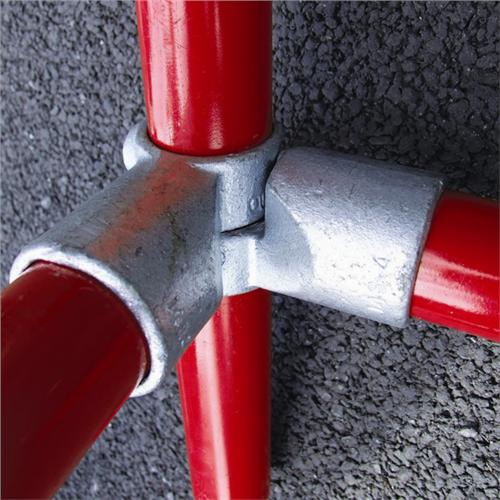

Image shows fitting used in a pair to create angles between 85° and 235°. A central tube is required to join the fittings together to create the angle.  Price is per single item

Equivalent product
 Interclamp  148
 Keeklamp  19
 Fast Clamp   C25
 Alvin  A21

All clamps come with stainless steel grub screws fitted. If full tightened using a ratchet key to a torque of 4.1kg/m (29ft/lb), the grub screw is capable of withstanding an applied slipload of 900kg.
