Gate Eye 138-C (42.4mm)

from only £2.25 (ex.VAT) £2.70 (inc.VAT)
Average: reviews


Available to buy
Available for Click and Collect
Product Code:138C
Bulk Discounts ex. VAT inc. VAT
Order 1 to 25 Tube Clamps  £2.80 £3.36
Order 26 to 49 Tube Clamps  £2.50 £3.00
Order over 50 Tube Clamps  £2.25 £2.70
View more:

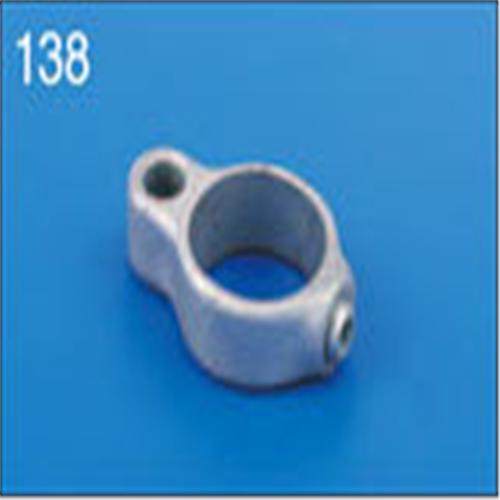

Tube Clamps, Gate Eye 138-C (42.4mm)

Tube Clamp or Pipe Clamps for 42.4mm tube. This malleable iron casting is also available in 48.3mm tube clamps & 33.7mm Tube Clamp. Complies with B.S. EN1461. And are also known by the term Key Clamps.

Manufacturing Standard B.S. EN1461.
Material Blackheart malleable iron casting (BS EN 1562:1997) using grade B32-10 material with a hot dipped galvanised finish (BS EN 1461:1999)
Allen Key Size 3/8
Weight 0.25kg

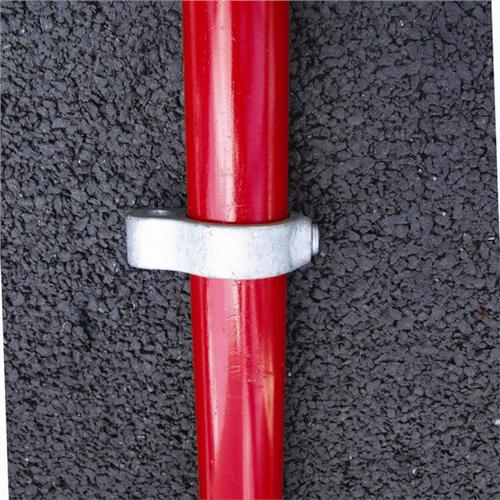

Female section of a two part gate hinge. Used in conjunction with our tube clamp fitting reference 140.

Equivalent product
 Interclamp  104
 Keeklamp  25
 Fast Clamp   C04
 Alvin  A4

All clamps come with stainless steel grub screws fitted. If full tightened using a ratchet key to a torque of 4.1kg/m (29ft/lb), the grub screw is capable of withstanding an applied slipload of 900kg.
