Hook 182-C (42.4mm)

from only £2.45 (ex.VAT) £2.94 (inc.VAT)
Average: 1 reviews










Available to buy
Available for Click and Collect
Product Code:182C
Bulk Discounts ex. VAT inc. VAT
Order 1 to 25 Tube Clamps  £3.05 £3.66
Order 26 to 49 Tube Clamps  £2.70 £3.24
Order over 50 Tube Clamps  £2.45 £2.94
View more:

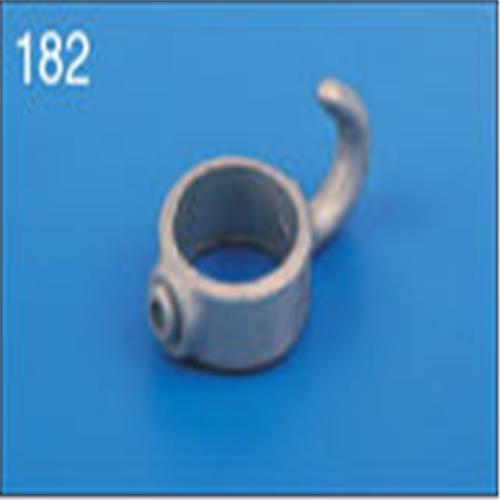

Tube Clamps, Hook 182-C (42.4mm)

Tube Clamp or Pipe Clamps for 42.4mm tube. This malleable iron casting is also available in 48.3mm tube clamps & 33.7mm Tube Clamp. Complies with B.S. EN1461. And are also known by the term Key Clamps.

InfoDetail
Manufacturing Standard B.S. EN1461.
Material Blackheart malleable iron casting (BS EN 1562:1997) using grade B32-10 material with a hot dipped galvanised finish (BS EN 1461:1999)
Allen Key Size 3/8
Weight 0.25kg

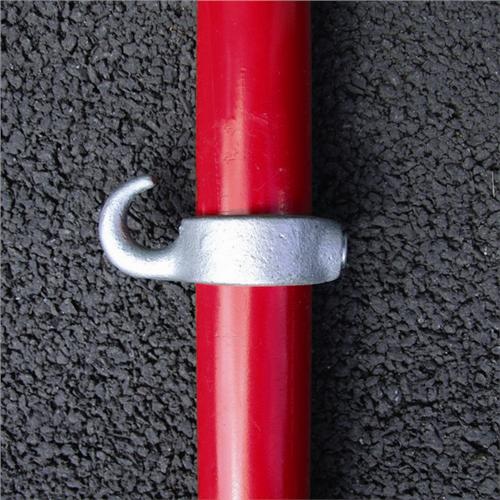

Chain hook. Used to locate chains across openings. Not for permanent chain location. Recommended that chain is fixed using a clamp fitting 173 and held  with a nut and bolt.

Equivalent product
 Interclamp  182
 Keeklamp  76
 Fast Clamp   C33
 Alvin  A64

All clamps come with stainless steel grub screws fitted. If full tightened using a ratchet key to a torque of 4.1kg/m (29ft/lb), the grub screw is capable of withstanding an applied slipload of 900kg.
