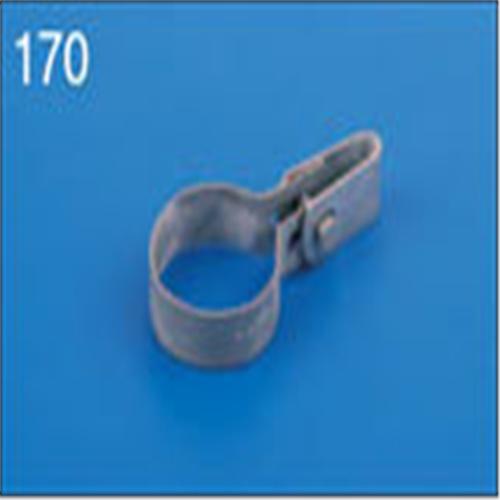

Single Mesh Clip 170-B (33.7mm)
Tube Clamp or Key Clamps for 33.7mm hand rail tube. This malleable iron casting is also available in 48.3mm tube clamps & 42.4mm tube clamps. Complies with B.S. EN1461. And are also known by the term pipe clamps.
| Info | Detail |
|---|
| Manufacturing Standard |
B.S. EN1461. |
| Material |
Blackheart malleable iron casting (BS EN 1562:1997) using grade B32-10 material with a hot dipped galvanised finish (BS EN 1461:1999) |
| Allen Key Size |
1/4 |
| Weight |
0.07kg |

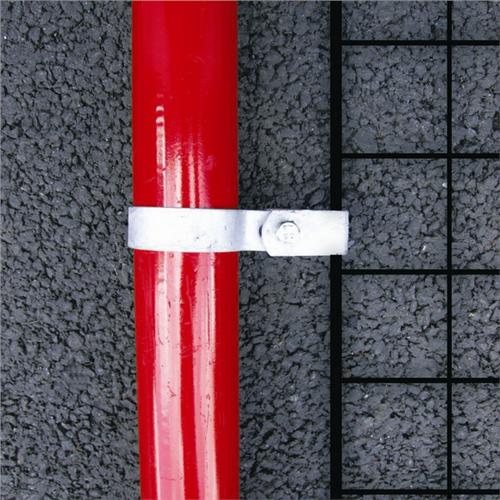

Double location single mesh clip. The slotted design of the panel clip enables adjustment in the location of the mesh panels. Supplied with M6 x 30mm long nut and bolt.
| Equivalent product | |
|---|
| Interclamp |
170 |
| Keeklamp |
81 |
| Fast Clamp |
C66 |
| Alvin |
A70 |
All clamps come with stainless steel grub screws fitted. If full tightened using a ratchet key to a torque of 4.1kg/m (29ft/lb), the grub screw is capable of withstanding an applied slipload of 900kg.
