Swivel Base Set 169-B (33.7mm)

from only £3.70 (ex.VAT) £4.44 (inc.VAT)
Average: 1 reviews
Available to buy
Available for Click and Collect
Product Code:169B
Bulk Discounts ex. VAT inc. VAT
Order 1 to 25 Tube Clamps  £4.60 £5.52
Order 26 to 49 Tube Clamps  £4.35 £5.22
Order over 50 Tube Clamps  £3.70 £4.44
View more:

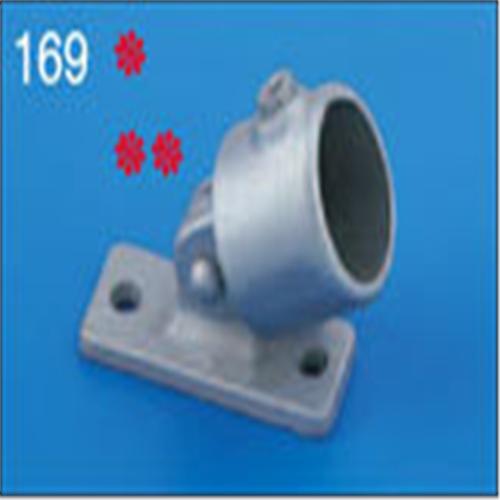

Swivel Base Set 169-B (33.7mm)

Tube Clamp or Key Clamps for 33.7mm hand rail tube. This malleable iron casting is also available in 48.3mm tube clamps & 42.4mm tube clamps. Complies with B.S. EN1461. And are also known by the term pipe clamps.

To secure this fitting we recommend a 10mm coach screw for wood applications, and a 7.5mm multi fix screw or 10mm through bolt for concrete applications.

InfoDetail
Manufacturing Standard B.S. EN1461.
Material Blackheart malleable iron casting (BS EN 1562:1997) using grade B32-10 material with a hot dipped galvanised finish (BS EN 1461:1999)
Allen Key Size 1/4
Weight 0.77kg

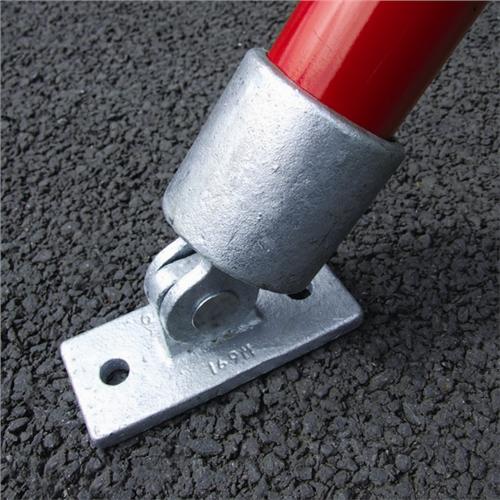

Complete locating swivel. Swivel has a travel of approximately 85° from the vertical in each direction.

To secure this fixing you can use an M10 through bolt.

Equivalent product
 Interclamp  169
 Keeklamp  C58
 Fast Clamp   C46
 Alvin  A52

We do not recommend pre-drilling as there can be irregularities in casting that can produce small variations in the size of the holes.

All clamps come with stainless steel grub screws fitted. If full tightened using a ratchet key to a torque of 4.1kg/m (29ft/lb), the grub screw is capable of withstanding an applied slipload of 900kg.

Technical Spec: Download Specification
TUV Certificate: Download Specification
